How to Create Vertical Toolbars

The key to creating a vertical toolbar is to include CCS_VERT in the window style, and to set the TBSTATE_WRAP style for each button.

What you need to know

Technologies

• Windows Controls

Prerequisites

• C/C++
• Windows User Interface Programming

Instructions

Create a Vertical Toolbar

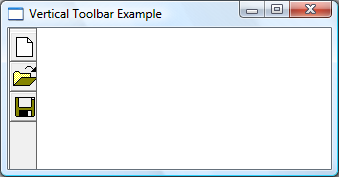

The following example code creates the vertical toolbar shown in the following illustration.

HIMAGELIST g_hImageList = NULL;

HWND CreateVerticalToolbar(HWND hWndParent)
{
    // Define the buttons.
    // IDM_NEW, IDM_0PEN, and IDM_SAVE are application-defined command IDs.

    TBBUTTON tbButtons3[numButtons] =
    {
        {STD_FILENEW,  IDM_NEW,  TBSTATE_ENABLED | TBSTATE_WRAP, BTNS_BUTTON, {0}, 0L, 0},
        {STD_FILEOPEN, IDM_OPEN, TBSTATE_ENABLED | TBSTATE_WRAP, BTNS_BUTTON, {0}, 0L, 0},
        {STD_FILESAVE, IDM_SAVE, TBSTATE_ENABLED | TBSTATE_WRAP, BTNS_BUTTON, {0}, 0L, 0}
    };

    // Create the toolbar window.
    HWND hWndToolbar = CreateWindowEx(0, TOOLBARCLASSNAME, NULL,
                                      WS_CHILD | WS_VISIBLE | CCS_VERT | WS_BORDER, 0, 0, 0, 0,
                                      hWndParent, NULL, g_hInst, NULL);

    // Create the image list.
    g_hImageList = ImageList_Create(24, 24,                   // Dimensions of individual bitmaps.
                                    ILC_COLOR16 | ILC_MASK,   // Ensures transparent background.
                                    numButtons, 0);

    // Set the image list.
    SendMessage(hWndToolbar, TB_SETIMAGELIST, 0, (LPARAM)g_hImageList);

    // Load the button images.
    SendMessage(hWndToolbar, TB_LOADIMAGES, (WPARAM)IDB_STD_LARGE_COLOR, (LPARAM)HINST_COMMCTRL);

    // Add them to the toolbar.
    SendMessage(hWndToolbar, TB_BUTTONSTRUCTSIZE,       (WPARAM)sizeof(TBBUTTON), 0);
    SendMessage(hWndToolbar, TB_ADDBUTTONS, numButtons, (LPARAM)&tbButtons3);

    return hWndToolbar;
}
