Deploy a self-hosted remote Azure MCP Server and connect to it using Microsoft Foundry

Deploy the Azure MCP Server as a self-hosted remote server over HTTPS. Agents in Microsoft Foundry and Microsoft Copilot Studio can securely connect to and call MCP tools using the deployed Azure MCP Server to run Azure operations. This article focuses on the Microsoft Foundry connection scenario.

Prerequisites

• Azure subscription with Owner or User Access Administrator access
• Azure Developer CLI (azd)
• The list of Azure MCP Server tool areas (namespaces) you wish to enable (see azmcp-commands.md). The reference template in this article uses the storage namespace.
• Azure Storage account
• Microsoft Foundry project

Azure MCP Server template

Use the Azure MCP Server - ACA with Managed Identity azd template to deploy Azure MCP Server to Azure Container Apps with storage tools and a managed identity for secure access to Azure Storage. The Azure Developer CLI (azd) is an open source tool that simplifies provisioning and deploying Azure resources and offers concise commands (azd deploy, azd provision) that map to key stages in your development workflow.

Deploy the Azure MCP server

Deploy the Azure MCP server to Azure Container Apps:

1. Clone and initialize the azmcp-foundry-aca-mi template with the azd init command.

   azd init -t azmcp-foundry-aca-mi


   When prompted, enter an environment name.

2. Run the template with the azd up command.

   azd up


   azd prompts you for the following:

   • Subscription: Select the subscription for the provisioned resources (listed below).
   • Project resource ID: The Azure resource ID of the Microsoft Foundry project used for agent integration.
   • Storage Account resource ID: The Azure resource ID of the storage account the MCP server accesses.
   • Resource group: Create or select a resource group to store the provision resources.

azd uses the template files to provision the following resources and configurations:

• Azure Container App: Runs the Azure MCP server and provides the storage namespace.
• Microsoft Entra ID role assignments: Assign roles to the Azure Container Apps managed identity for outbound authentication to the storage account you specify with the storage resource ID:
  • Reader: Read-only access to storage account properties.
  • Storage Blob Data Reader: Read-only access to blob data.
• Entra app registration: Provides OAuth 2.0 authentication for clients like agents that have the Mcp.Tools.ReadWrite.All role. The template assigns this role to the managed identity of the Microsoft Foundry project you specify.
• Application Insights: Provides telemetry and monitoring.

Deployment output

1. After deployment finishes, retrieve the environment variables for the azd project using the azd env get-values command.

   azd env get-values


   Example output:

   CONTAINER_APP_URL="https://azure-mcp-storage-server.<your-container-app-name>.eastus2.azurecontainerapps.io"
   ENTRA_APP_CLIENT_ID="<your-app-client-id>"
   ENTRA_APP_IDENTIFIER_URI="api://<your-app-client-id>"
   ENTRA_APP_OBJECT_ID="<your-app-object-id>"
   ENTRA_APP_ROLE_ID="<your-app-role-id>"
   ENTRA_APP_SERVICE_PRINCIPAL_ID="<your-app-service-principal-id>"


2. Copy the CONTAINER_APP_URL and ENTRA_APP_CLIENT_ID values to use in the next section, or leave the terminal open for reference.

Use the Azure MCP server from AI Foundry agent

After deployment, connect your AI Foundry agent to the Azure MCP Server running on Azure Container Apps. The agent authenticates using its managed identity to gain access to the configured Azure Storage tools.

1. Go to your Foundry project at https://ai.azure.com/nextgen.

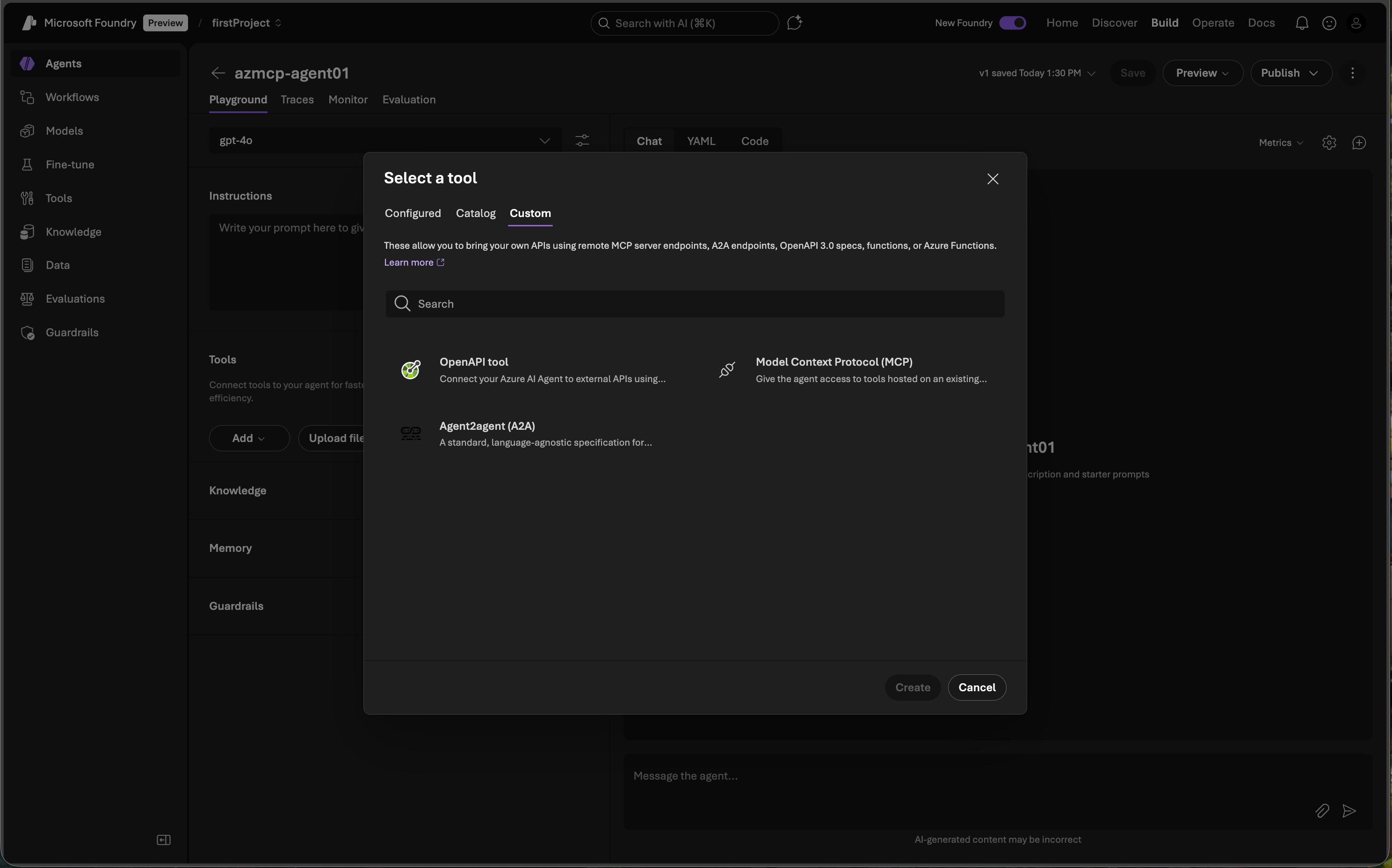

2. Select Build → Create agent.

3. Select + Add in the tools section.

4. Select the Custom tab.

5. Select Model Context Protocol, then select Create.

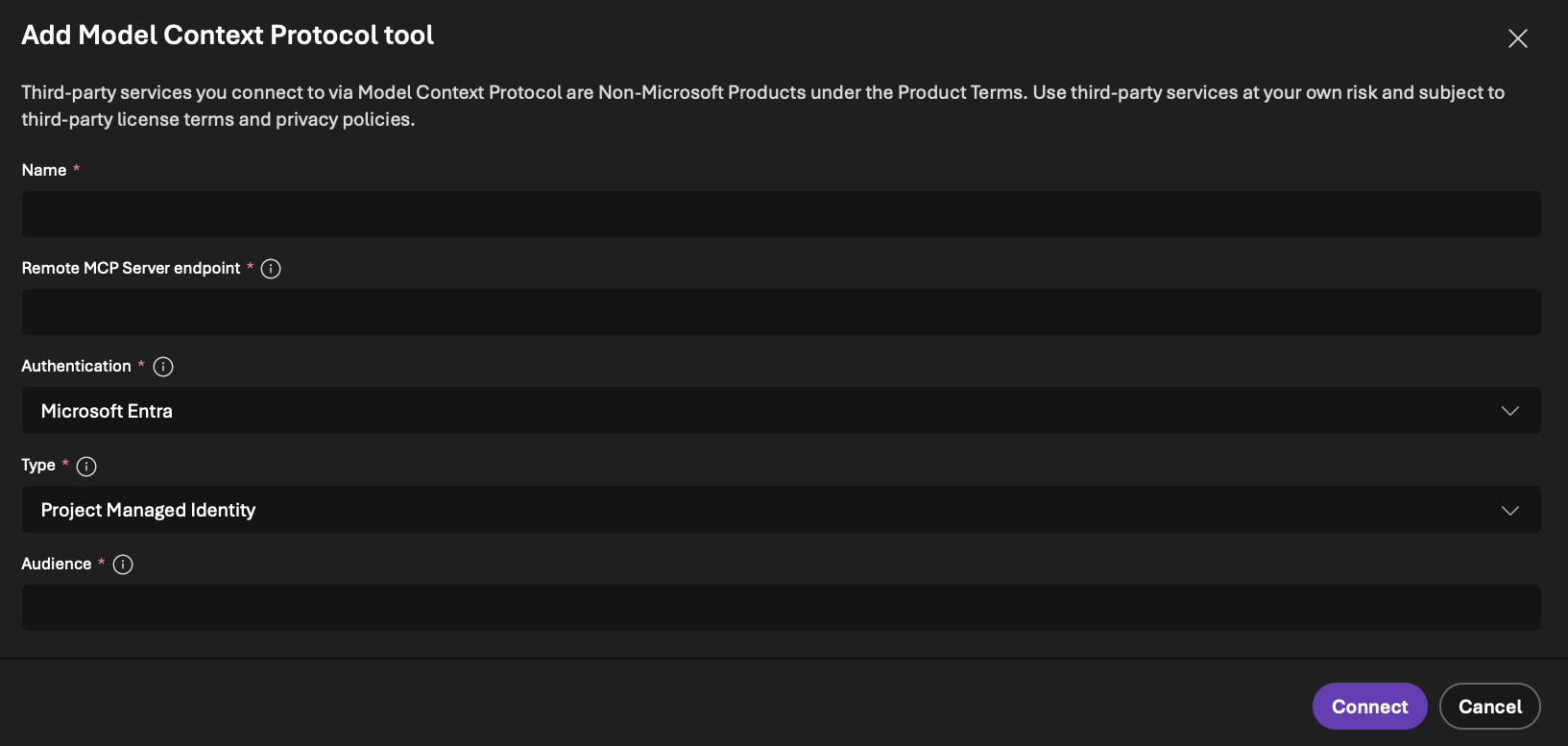

6. Configure the MCP connection values:

   • Name: Provide a name for the tool.
   • Remote MCP Server: Enter the CONTAINER_APP_URL value from the azd output for the tool endpoint.
   • Authentication: Select Microsoft Entra → Project Managed Identity.
   • Type: Select Project Managed Identity.
   • Audience: Enter the ENTRA_APP_CLIENT_ID value from the azd output.

   Select Connect to associate the connection with the agent.

The agent is ready to assist you. It answers questions and uses tools from the Azure MCP Server to perform Azure operations for you.

Clean up resources

Run azd down to delete Azure resources.

azd down

Explore the Bicep modules

The azd template includes the following Bicep modules:

• main.bicep orchestrates deployment of all resources.
• aca-infrastructure.bicep deploys the container app hosting Azure MCP Server.
• aca-role-assignment-resource-storage.bicep assigns Azure Storage RBAC roles to the container app's managed identity on the storage account specified by the input storage account resource ID.
• entra-app.bicep creates an Entra app registration and a custom app role for OAuth 2.0 authentication.
• aif-role-assignment-entraapp.bicep assigns the Entra app role to the AI Foundry project's managed identity (specified by the input AI Foundry resource ID) for Azure MCP Server access.
• application-insights.bicep deploys Application Insights for telemetry and monitoring when enabled.
