Although fully autonomous agents sound powerful, practical applications often require human intervention for critical decisions, approvals, or feedback before proceeding.
All Microsoft Agent Framework orchestrations support Human-in-the-Loop (HITL) capabilities, allowing the workflow to pause and request input from a human user at designated points. This ensures the following:
- Sensitive actions are reviewed and approved by humans, enhancing safety and reliability.
- A feedback loop exists where humans can guide agent behavior, improving outcomes.
Important
The Handoff orchestration is specifically designed for complex multi-agent scenarios requiring extensive human interaction. Thus, its HITL features are designed differently from other orchestrations. See the Handoff Orchestration documentation for details.
Important
For group-chat-based orchestrations (Group Chat and Magentic), the orchestrator can also request human feedback and approvals as needed, depending on the implementation of the orchestrator.
How Human-in-the-Loop Works
Tip
The HITL functionality is built on top of the existing request/response mechanism in Microsoft Agent Framework workflows. If you're unfamiliar with this mechanism, please refer to the Request and Response documentation first.
Coming soon...
When HITL is enabled in an orchestration, via the with_request_info() method on the corresponding builder (e.g., SequentialBuilder), a subworkflow is created to facilitate human interaction for the agent participants.
Take the Sequential orchestration as an example. Without HITL, the agent participants are directly plugged into a sequential pipeline:

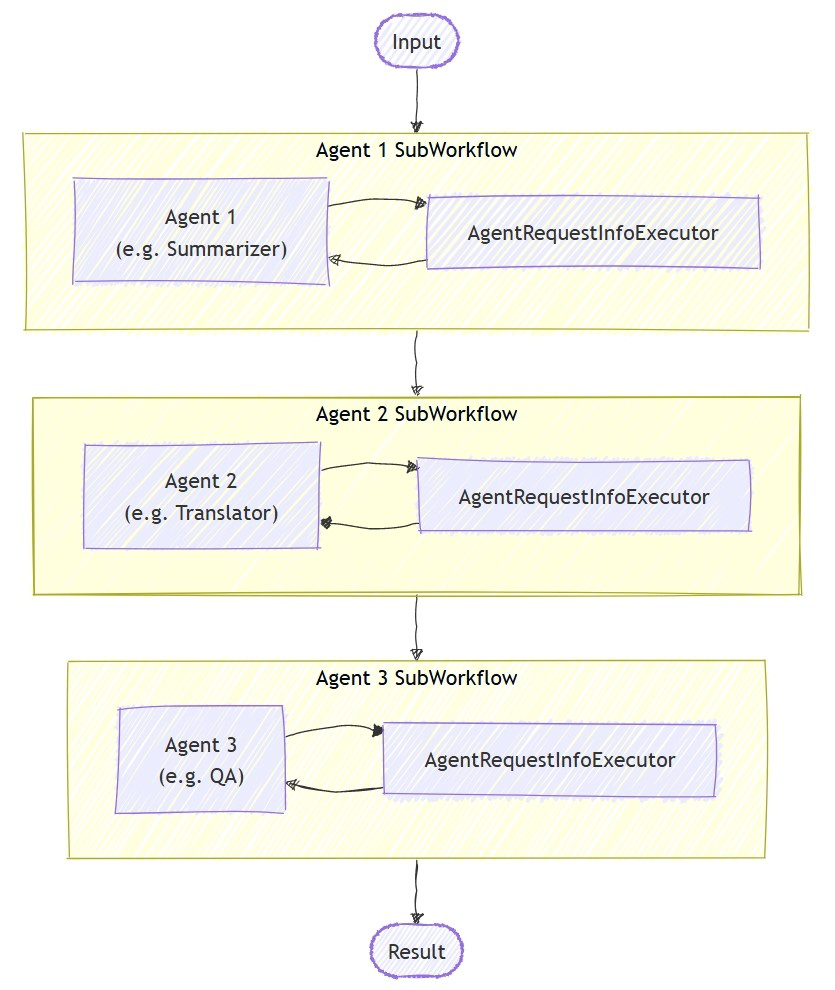

With HITL enabled, the agent participants are plugged into a subworkflow that handles human requests and responses in a loop:
When an agent produces an output, the output doesn't go directly to the next agent or the orchestrator. Instead, it is sent to the AgentRequestInfoExecutor in the subworkflow, which sends the output as a request and waits for a response of type AgentRequestInfoResponse.
To proceed, the system (typically a human user) must provide a response to the request. This response can be one of the following:
- Feedback: The human user can provide feedback on the agent's output, which is then sent back to the agent for further refinement. Can be created via
AgentRequestInfoResponse.from_messages()orAgentRequestInfoResponse.from_strings(). - Approval: If the agent's output meets the human user's expectations, the user can approve it to allow the subworkflow to output the agent's response and the parent workflow to continue. Can be created via
AgentRequestInfoResponse.approve().
Tip
The same process applies to Concurrent, Group Chat, and Magnetic orchestrations.
Only enable HITL for a subset of agents
Coming soon...
You can choose to enable HITL for only a subset of agents in the orchestration by specifying the agent IDs when calling with_request_info(). For example, in a sequential orchestration with three agents, you can enable HITL only for the second agent:
builder = (
SequentialBuilder()
.participants([agent1, agent2, agent3])
.with_request_info(agents=[agent2])
)
Function Approval with HITL
When your agents use functions that require human approval (e.g., functions decorated with @ai_function(approval_mode="always_require")), the HITL mechanism seamlessly integrates function approval requests into the workflow.
Tip
See the Function Approval documentation for more details on function approval.
When an agent attempts to call such a function, a FunctionApprovalRequestContent request is generated and sent to the human user for approval. The workflow pauses if no other path is available and waits for the user's decision. The user can then approve or reject the function call, and the response is sent back to the agent to proceed accordingly.
Next steps
Head over to our samples in the Microsoft Agent Framework GitHub repository to see HITL in action.
