How to fix a 2714 error when trying to install a setup.exe file created in Visual Studio deployment projects (setup project).

The error code 2714 typically indicates that the installer has encountered an unexpected error related to the package. Here are some steps you can take to troubleshoot and potentially resolve this issue:

1. Check for Corrupted Files: Ensure that all files included in your setup project are not corrupted. Sometimes, a corrupted file can cause the installer to fail.
2. Review the Setup Project Configuration: Double-check the configuration of your setup project. Ensure that all necessary files and dependencies are included and correctly referenced.
3. Rebuild the Setup Project: Sometimes, simply rebuilding the setup project can resolve issues. Clean the solution and then rebuild the setup project to create a fresh installer.
4. Run as Administrator: Try running the setup.exe as an administrator. Right-click on the setup file and select "Run as administrator" to see if that resolves the issue.
5. Check Event Viewer: Look at the Windows Event Viewer for any additional error messages that might provide more context about the failure. This can often give you more insight into what went wrong during the installation.
6. Test on a Different Machine: If possible, try installing the application on a different machine to see if the issue persists. This can help determine if the problem is specific to the machine or the installer itself.
7. Update Visual Studio: Ensure that you are using the latest version of Visual Studio and that all components are up to date. Sometimes, updates can fix underlying issues with the setup project.

If these steps do not resolve the issue, you may want to consider creating a new setup project from scratch to see if that alleviates the problem.

Thank you for reaching out

Error 2714 means the Windows Installer found an invalid folder or file name inside your MSI package. This usually happens because:

• A Directory name in the MSI contains a full path instead of just a folder name.
• A File or Shortcut entry includes path separators (\ or /) or illegal characters.
• The installer is trying to create a folder that doesn’t exist or points to a bad shell location.

Windows Installer expects each folder or file name to follow strict rules (single name only, no full paths, short name | long name format). If these rules are broken, you get error 2714.

Steps to Fix

1. Generate a detailed log to find the problem
   1. Open Command Prompt and run: msiexec /i setup.msi /l*v %TEMP%\setup2714.log
   2. After it fails, open setup2714.log and search for Error 2714. The line will show the exact name causing the issue.
2. Check the MSI tables
   1. Download and open Orca (Microsoft’s MSI editor).

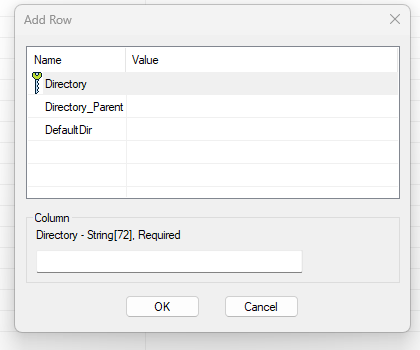

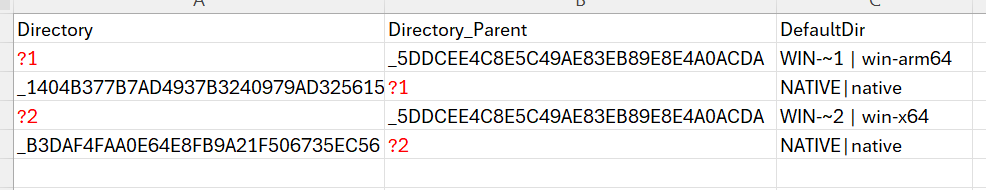

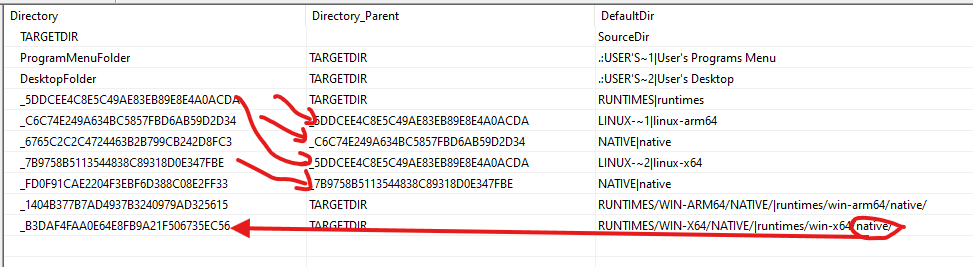

   2. Go to the Directory table:
      • Each row should have only one folder name (e.g., APPDIR → APP~1|App).
      • Remove any full paths like C:\Program Files\App.
   3. Check File and Shortcut tables:
      • Names must be in SHORTNAME|LongName format (e.g., MYFILE~1.TXT|MyFile.txt).
      • No slashes or backslashes in names.
3. Fix invalid entries
   1. Split paths into separate directory rows instead of putting the whole path in one name.
   2. Remove illegal characters from short names.
4. Verify target folders
   1. Make sure the installer’s default folder (like Program Files) exists and is valid on the machine.
5. Rebuild the Setup Project
   1. In Visual Studio, Clean and Rebuild the setup project after fixing the MSI.
   2. If you’re packaging a .NET 5+ or .NET Core app, use Publish Items instead of Primary Output and include prerequisites.
6. Test again
   1. Try installing on another machine to confirm it’s fixed.

Please let us know if you require any further assistance, we’re happy to help.

If you found this information useful, kindly mark this as "Accept Answer".
