Automatically upgrade an Azure Kubernetes Service (AKS) cluster

Part of the AKS cluster lifecycle involves performing periodic upgrades to the latest Kubernetes version. It's important you apply the latest security releases or upgrade to get the latest features. Before you learn about automatic upgrades, make sure you understand the AKS cluster upgrade fundamentals.

Why use cluster autoupgrade

Cluster autoupgrade provides a set once and forget mechanism that yields tangible time and operational cost benefits. You don't need to stop your workloads, redeploy your workloads, or create a new AKS cluster. By enabling autoupgrade, you can ensure your clusters are up to date and don't miss the latest features or patches from AKS and upstream Kubernetes.

AKS follows a strict supportability versioning window. With properly selected autoupgrade channels, you can avoid clusters falling into an unsupported version. For more on the AKS support window, see Alias minor versions.

Customer versus AKS-initiated autoupgrades

You can specify cluster autoupgrade specifics using the following guidance. The upgrades occur based on your specified cadence and are recommended to remain on supported Kubernetes versions.

AKS also initiates autoupgrades for unsupported clusters. When a cluster in an n-3 version (where n is the latest supported AKS GA minor version) is about to drop to n-4, AKS automatically upgrades the cluster to n-2 to remain in an AKS support policy. Automatically upgrading a platform supported cluster to a supported version is enabled by default. Stopped node pools are upgraded during an autoupgrade operation. The upgrade applies to nodes when the node pool is started. To minimize disruptions, set up maintenance windows.

Cluster autoupgrade limitations

If you're using cluster autoupgrade, you can no longer upgrade the control plane first, and then upgrade the individual node pools. Cluster autoupgrade always upgrades the control plane and the node pools together. You can't upgrade the control plane only. Running the az aks upgrade --control-plane-only command raises the following error:

NotAllAgentPoolOrchestratorVersionSpecifiedAndUnchanged: Using managed cluster api, all Agent pools' OrchestratorVersion must be all specified or all unspecified. If all specified, they must be stay unchanged or the same with control plane.

If using the node-image (legacy and not to be used) cluster autoupgrade channel or the NodeImage node image autoupgrade channel, Linux unattended upgrades are disabled by default.

Cluster autoupgrade channels

Automatically completed upgrades are functionally the same as manual upgrades. The selected autoupgrade channel determines the timing of upgrades. When making changes to autoupgrade, allow 24 hours for the changes to take effect. Automatically upgrading a cluster follows the same process as manually upgrading a cluster. For more information, see Upgrade an AKS cluster.

The following upgrade channels are available:

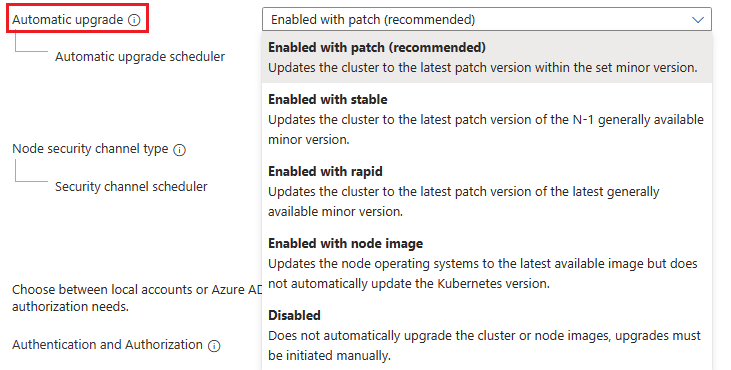

Use cluster autoupgrade with a new AKS cluster

export RANDOM_SUFFIX=$(openssl rand -hex 3)
export RESOURCE_GROUP="myResourceGroup$RANDOM_SUFFIX"
export AKS_CLUSTER_NAME="myAKSCluster"
az aks create --resource-group $RESOURCE_GROUP --name $AKS_CLUSTER_NAME --auto-upgrade-channel stable --generate-ssh-keys

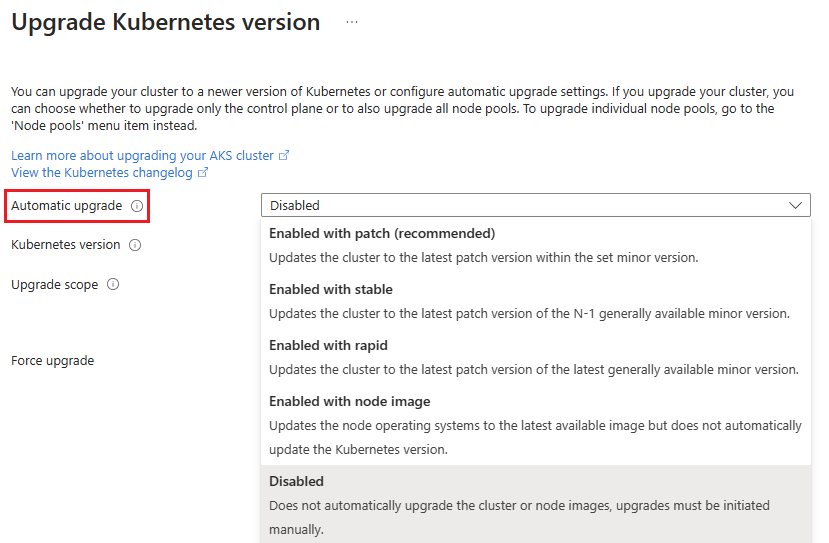

Use cluster autoupgrade with an existing AKS cluster

az aks update --resource-group $RESOURCE_GROUP --name $AKS_CLUSTER_NAME --auto-upgrade-channel stable

{
  "id": "/subscriptions/aaaa6a6a-bb7b-cc8c-dd9d-eeeeee0e0e0e/resourceGroups/myResourceGroupabc123/providers/Microsoft.ContainerService/managedClusters/myAKSCluster",
  "properties": {
    "autoUpgradeChannel": "stable",
    "provisioningState": "Succeeded"
  }
}

Use autoupgrade with Planned Maintenance

If using Planned Maintenance and cluster autoupgrade, your upgrade starts during your specified maintenance window.

For more information on how to set a maintenance window with Planned Maintenance, see Use Planned Maintenance to schedule maintenance windows for your Azure Kubernetes Service (AKS) cluster.

Best practices for cluster autoupgrade

Use the following best practices to help maximize your success when using autoupgrade:

• To ensure your cluster is always in a supported version, for example within the N-2 rule, choose either stable or rapid channels.
• If you're interested in getting the latest patches as soon as possible, use the patch channel. The node-image channel is a good fit if you want your agent pools to always run the most recent node images.
• To automatically upgrade node images while using a different cluster upgrade channel, consider using the node image autoupgrade NodeImage channel.
• Follow Operator best practices.
• Follow PodDisruptionBudget (PDB) best practices.
• For upgrade troubleshooting information, see the AKS troubleshooting documentation.

For a detailed discussion of upgrade best practices and other considerations, see AKS patch and upgrade guidance.
