Getting started with Call Readiness and the UI Library

When a user intends to join a web call, their primary focus is on the conversation they want to have with the other person(s) on the call – this persona could be a doctor, teacher, financial advisor, or friend. The conversation itself may pose enough stress, let alone navigating the process of making sure they and their device(s) are ready to be seen and/or heard. It's critical to ensure the device and client they're using is ready for the call

It may be impossible to predict every issue or combination of issues that may arise, but by applying this tutorial you can:

• Reduce the likelihood of issues affecting a user during a call
• Only expose an issue if it's going to negatively impact the experience
• Avoid making a user hunt for a resolution; Offer guided help to resolve the issue

Related to this tutorial is the Azure Communication Services Network Testing Diagnostic Tool. Users can use the Network Testing Diagnostics Tool for further troubleshooting in customer support scenarios.

Tutorial Structure

In this tutorial, we use the Azure Communication Services UI Library to create an experience that gets the user ready to join a call. This tutorial is structured into three parts:

• Part 1: Getting your user onto a supported browser
• Part 2: Ensuring your App has access to the microphone and camera
• Part 3: Having your user select their desired microphone and camera

Prerequisites

• Visual Studio Code on one of the supported platforms.
• Node.js, Active LTS and Maintenance LTS versions (10.14.1 recommended). Use the node --version command to check your version.

Download code

Access the full code for this tutorial on GitHub.

App Structure

Users have several hurdles to cross when joining a call from browser support to selecting the correct camera. This tutorial uses React with Azure Communication Services UI Library to create an app that performs call readiness checks. These checks guide the user through browser support, camera and microphone permissions and finally device setup.

The user flow of the App is as follows:

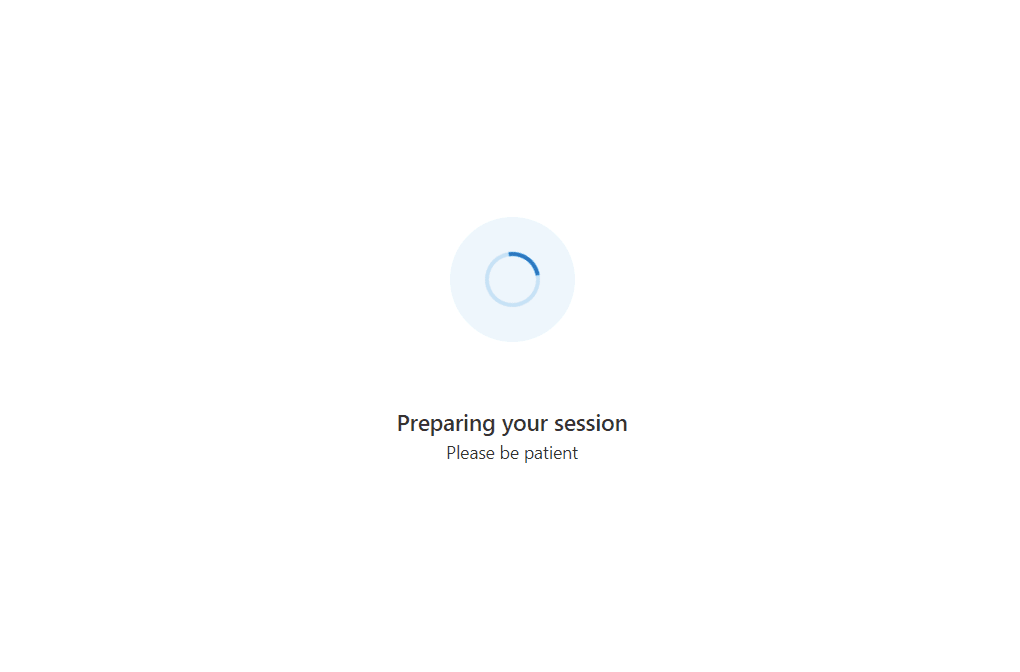

Your final app prompts the user onto a supported browser and access for the camera and microphone, then let the user choose and preview their microphone and camera settings before joining the call:

Set up the Project

To create a react App, we use vite. It is a build tool that aims to provide a faster and leaner development experience for modern web projects. You can read more about vite here Create a React App from scratch and Getting Started with Vite

Note that the Azure Communication Service UI library only supports up to React 18. Verify that you are on the supported version after creating the react app by checking package.json. For this quickstart, we modify the files inside of the src folder.

Install Packages

As this feature is in public preview, you must use the beta versions of the Azure Communication Services npm packages. Use the npm install command to install these packages:

# Install Public Preview versions of the Azure Communication Services Libraries.
npm install @azure/communication-react@1.28.0-beta.1 @azure/communication-calling@1.36.3-beta.1

Initial App Setup

To get us started, we replace the default App.tsx content with a basic setup that:

• Registers the necessary icons we use in this tutorial
• Sets a theme provider that can be used to set a custom theme
• Create a StatefulCallClient with a provider that gives child components access to the call client

src/App.tsx

import { CallClientProvider, createStatefulCallClient, FluentThemeProvider, useTheme } from '@azure/communication-react';
import { initializeIcons, registerIcons, Stack, Text } from '@fluentui/react';
import { DEFAULT_COMPONENT_ICONS } from '@azure/communication-react';
import { CheckmarkCircle48Filled } from '@fluentui/react-icons';

// Initializing and registering icons should only be done once per app.
initializeIcons();
registerIcons({ icons: DEFAULT_COMPONENT_ICONS });

const USER_ID = 'user1'; // In your production app replace this with an Azure Communication Services User ID
const callClient = createStatefulCallClient({ userId: { communicationUserId: USER_ID } });

/**
 * Entry point of a React app.
 */
const App = (): JSX.Element => {
  return (
    <FluentThemeProvider>
      <CallClientProvider callClient={callClient}>
        <TestComplete />
      </CallClientProvider>
    </FluentThemeProvider>
  );
}

export default App;

/**
 * Final page to highlight the call readiness checks have completed.
 * Replace this with your own App's next stage.
 */
export const TestComplete = (): JSX.Element => {
  const theme = useTheme();
  return (
    <Stack verticalFill verticalAlign="center" horizontalAlign="center" tokens={{ childrenGap: "1rem" }}>
      <CheckmarkCircle48Filled primaryFill={theme.palette.green} />
      <Text variant="xLarge">Call Readiness Complete</Text>
      <Text variant="medium">From here you can have the user join their call using their chosen settings.</Text>
    </Stack>
  );
};

Run React App

Let's test our setup by running:

# Run the React App
npm run dev

Once the App is running visit http://localhost:3000 in your browser to see your running App. You should see a green checkmark with a Test Complete message.
