This article describes the Dell Edge 5200 appliance for OT sensors.
Note
Legacy appliances are certified but aren't currently offered as pre-configured appliances.
| Appliance characteristic | Details |
|---|---|
| Hardware profile | E500 |
| Performance | Max bandwidth: 1 Gbps Max devices: 10,000 |
| Physical specifications | Mounting: Wall Mount Ports: 3x RJ45 |
| Status | Supported, available preconfigured |

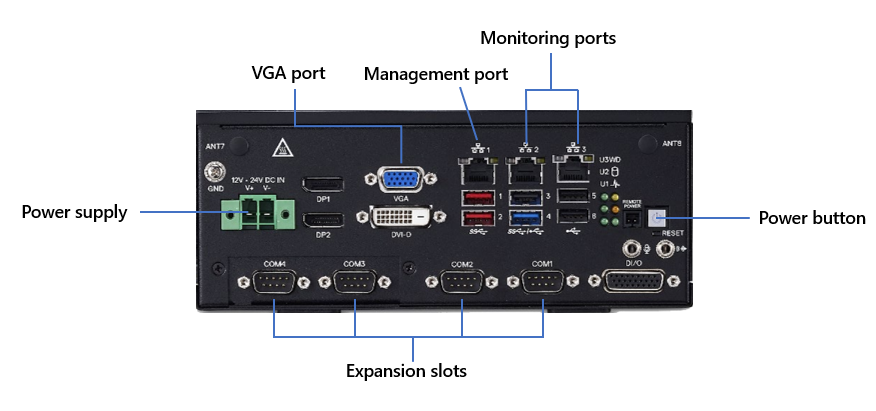

The following image shows the hardware elements on the Dell Edge 5200 that are used by Defender for IoT:
Specifications
| Component | Technical specifications |
|---|---|
| Chassis | Desktop / Wall mount server Rugged MIL-STD-810G |
| Dimensions | 211 mm (W) x 240 mm (D) x 86 mm (H) |
| Weight | 4.7 kg |
| Processor | Intel® Core™ i7-9700TE |
| Chipset | Intel C246 |
| Memory | 32 GB = Two 16 GB DDR4 ECC UDIMM |
| Storage | 1x 512 GB SSD |
| Network controller | 3x Intel GbE: 2x i210 or i225 + i219LM PHY (Note - i225 supported from version 23.2.x major release) |
| Management | Intel AMT supported on i5 and i7 CPUs |
| Device access | 6x USB 3.0 |
| Power | DC Input 12–24 V (±10% tolerance) AC Input Optional: 180 W / 220 W, 60 W (for PoE) external AC/DC adapter |
Dell Edge 5200 Bill of materials
| Quantity | PN | Description |
|---|---|---|
| 1 | 210-BCNV | Dell EMC Edge Gateway 5200, Core i7-9700TE.32G.512G, Win 10 IoT.TPM, OEM |
| 1 | 631-ADIJ | User Documentation EMEA 2 |
| 1 | 683-1187 | No Installation Service Selected (Contact Sales Rep for more details) |
| 1 | 709-BDGW | Parts Only Warranty 15 Months |
| 1 | 199-BIRV | ProSupport and Next Business Day Onsite Service Initial, 15 Month(s) |
| 1 | 199-BIRW | ProSupport and Next Business Day Onsite Service Extension, 21 Month(s) |
| 1 | 990-10090 | EX-Works |
Next steps
Continue understanding system requirements for physical or virtual appliances. For more information, see Which appliances do I need?.
Then, use any of the following procedures to continue:
