Expander

The Expander control provides an expandable container to host any content. The control has two main properties to store your content:

This Header property can be provided with any view to allow for full customization. The Header will always be visible and interacting with it (clicking or tapping) will show/collapse the Content.

Note

It is not recommended to place controls inside the header that allow user interaction.

Content

This is the main content that will show when the Header property is interacted with it (clicked or tapped) or the IsExpanded property is modified.

Note

Expander may work unexpectedly if it is placed inside ListView or CollectionView. However, it can be controlled with the custom implementation by setting public Action<TappedEventArgs>? HandleHeaderTapped { get; set; }. This action is executed each time the header tapped. Please pay attention, by changing this action you may receive different behavior in CollectionView and ListView on all platforms.

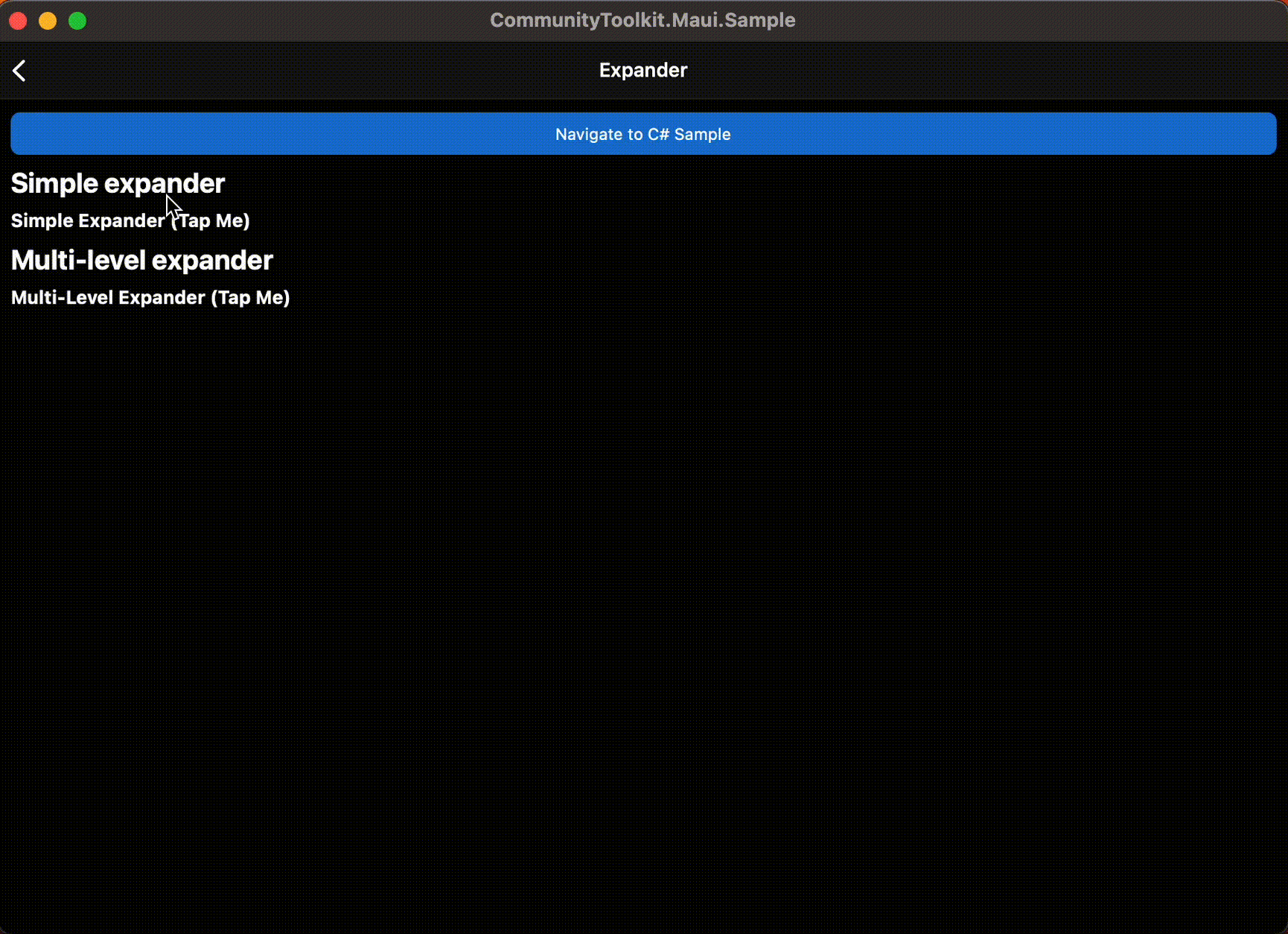

Screenshot of an Expander in collapsed and expanded states

Basic usage

The following examples show how to use the Expander view by setting the Header property to be a Label control and the Content to be a HorizontalStackLayout with an Image and a Label inside.

XAML

Including the XAML namespace

In order to use the toolkit in XAML the following xmlns needs to be added into your page or view:

xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"

Therefore the following:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml">

</ContentPage>

Would be modified to include the xmlns as follows:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit">

</ContentPage>

Using the Expander

The following example shows how to add an Expander view in XAML.

<toolkit:Expander>
    <toolkit:Expander.Header>
        <Label Text="Baboon"
               FontAttributes="Bold"
               FontSize="Medium" />
    </toolkit:Expander.Header>
    <HorizontalStackLayout Padding="10">
        <Image Source="http://upload.wikimedia.org/wikipedia/commons/thumb/f/fc/Papio_anubis_%28Serengeti%2C_2009%29.jpg/200px-Papio_anubis_%28Serengeti%2C_2009%29.jpg"
               Aspect="AspectFill"
               HeightRequest="120"
               WidthRequest="120" />
        <Label Text="Baboons are African and Arabian Old World monkeys belonging to the genus Papio, part of the subfamily Cercopithecinae."
               FontAttributes="Italic" />
    </HorizontalStackLayout>
</toolkit:Expander>

C#

The following example shows how to add an Expander view in C#.

using CommunityToolkit.Maui.Views;

var expander = new Expander
{
    Header = new Label
    {
        Text = "Baboon",
        FontAttributes = FontAttributes.Bold,
        FontSize = Device.GetNamedSize(NamedSize.Medium, typeof(Label))
    }
};

expander.Content = new HorizontalStackLayout
{
    Padding = new Thickness(10),

    Children =
    {
        new Image
        {
            Source = "http://upload.wikimedia.org/wikipedia/commons/thumb/f/fc/Papio_anubis_%28Serengeti%2C_2009%29.jpg/200px-Papio_anubis_%28Serengeti%2C_2009%29.jpg",
            Aspect = Aspect.AspectFill,
            HeightRequest = 120,
            WidthRequest = 120
        },

        new Label
        {
            Text = "Baboons are African and Arabian Old World monkeys belonging to the genus Papio, part of the subfamily Cercopithecinae.",
            FontAttributes = FontAttributes.Italic
        }
    }
};

C# Markup

using CommunityToolkit.Maui.Views;

Content = new Expander
{
    Header = new Label()
        .Text("Baboon")
        .Font(bold: true, size: 18),

    Content = new HorizontalStackLayout
    {
        new Image()
            .Source("http://upload.wikimedia.org/wikipedia/commons/thumb/f/fc/Papio_anubis_%28Serengeti%2C_2009%29.jpg/200px-Papio_anubis_%28Serengeti%2C_2009%29.jpg")
            .Size(120)
            .Aspect(Aspect.AspectFill),

        new Label()
            .Text("Baboons are African and Arabian Old World monkeys belonging to the genus Papio, part of the subfamily Cercopithecinae.")
            .Font(italic: true)

    }.Padding(10)

}.CenterHorizontal();

Properties

Property Type Description
Command ICommand Executes when the Expander header is tapped.
CommandParameter object The parameter that's passed to Command.
Direction ExpandDirection Defines the expander direction.
Content IView? Defines the content to be displayed when the Expander expands.
Header IView? Defines the header content.
IsExpanded bool Determines if the Expander is expanded. This property uses the TwoWay binding mode, and has a default value of false.

The ExpandDirection enumeration defines the following members:

Value Description
Down Indicates that the Expander content is under the header.
Up Indicates that the Expander content is above the header.

The Expander control also defines a ExpandedChanged event that's fired when the Expander header is tapped.

ExpandedChangedEventArgs

Event argument which contains Expander IsExpanded state.

Properties

Property Type Description
IsExpanded bool Determines if the Expander is expanded.

Examples

You can find an example of this feature in action in the .NET MAUI Community Toolkit Sample Application.

API

You can find the source code for Expander over on the .NET MAUI Community Toolkit GitHub repository.
