This article shows you how to add an Azure IoT Hub source to a Microsoft Fabric eventstream.
Note
Enhanced capabilities are enabled by default when you create eventstreams. If you have eventstreams that you created via standard capabilities, those eventstreams will continue to work. You can still edit and use them as usual. We recommend that you create a new eventstream to replace standard eventstreams so that you can take advantage of additional capabilities and benefits of enhanced eventstreams.
Prerequisites
- Access to a workspace in the Fabric capacity license mode or trial license mode with Contributor or higher permissions.
- Appropriate permission to get your IoT hub's access keys. If your IoT hub is within a protected network, connect to it by using a managed private endpoint. Otherwise, ensure that the IoT hub is publicly accessible and not behind a firewall.
- An eventstream. If you don't have an eventstream, create one.
Start the wizard for selecting a data source
If you haven't added any source to your eventstream yet, select the Use external source tile.
If you're adding the source to an already published eventstream, switch to Edit mode. On the ribbon, select Add source > External sources.

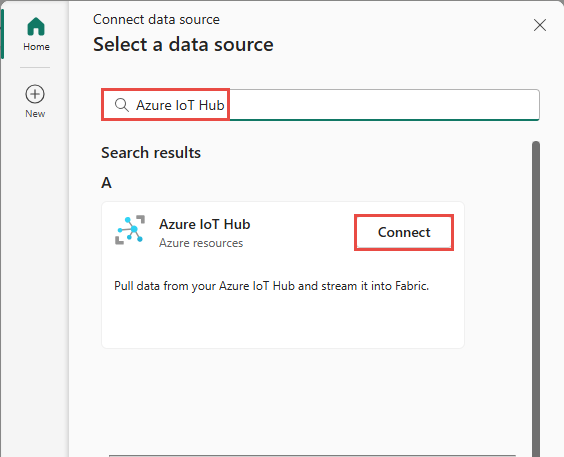

On the Select a data source page, search for Azure IoT Hub. On the Azure IoT Hub tile, select Connect.
Configure an Azure IoT Hub connector

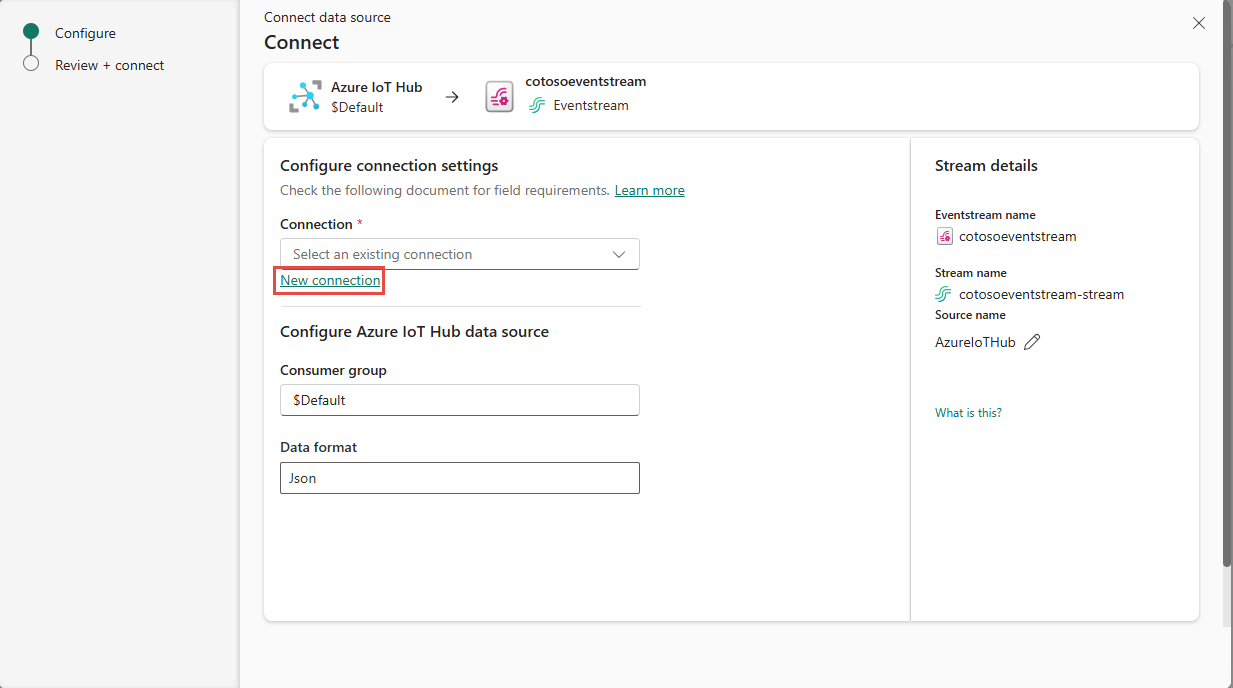

On the Connect page, select New connection.
If there's an existing connection to your IoT hub, select that existing connection, and then move on to configuring Data format in the following steps.
In the Connection settings section, for IoT Hub, specify the name of your IoT hub.
In the Connection credentials section, follow these steps:
If there's an existing connection, select it from the dropdown list. If not, confirm that Create new connection is selected for this option.
For Connection name, enter a name for the connection to the IoT hub.
For Authentication kind, confirm that Shared Access Key is selected.
For Shared Access Key Name, enter the name of the shared access key.
For Shared Access Key, enter the value of the shared access key.

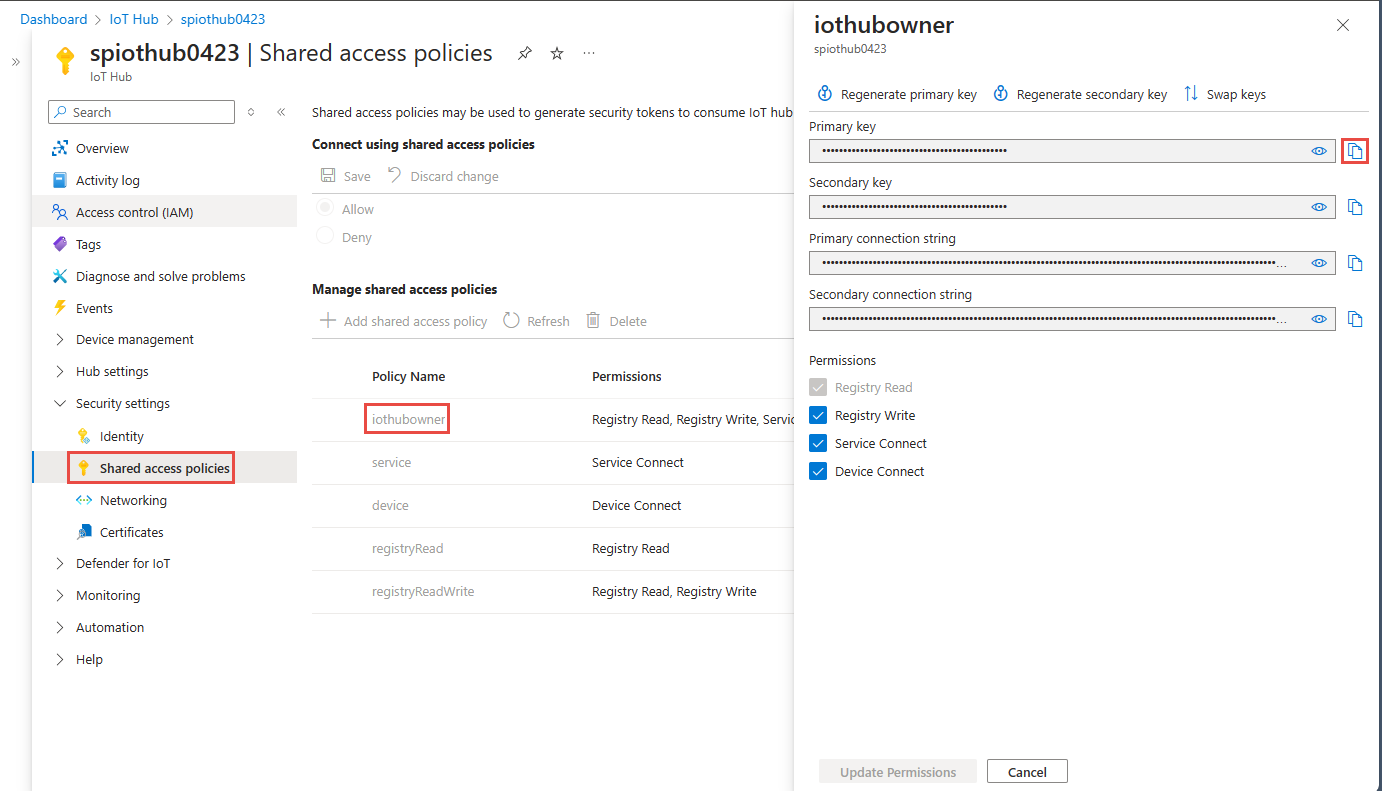

To get the name and value of the shared access key, follow these steps:
- Go to the page for your IoT hub in the Azure portal.
- On the left pane, under Security settings, select Shared access policies.
- Select a policy name from the list. Note down the policy name.
- Select the copy button next to the Primary key.
Select Connect.
For Consumer group, enter the name of the consumer group. The default consumer group for the IoT hub is $Default.
For Data format, select a data format for the incoming real-time events that you want to get from your IoT hub. You can select from JSON, Avro, and CSV data formats. Then select Connect.
In the Stream details section on the right, select the pencil icon under Source name, and then enter a name for the source. This step is optional.
Select Next at the bottom of the page.
On the Review and create page, review your settings, and then select Add.
Note
An eventstream can support up to 11 combined sources and destinations only when you're using the following types:
- Source: Custom endpoint.
- Destinations: Custom endpoint and eventhouse with direct ingestion.
Any sources or destinations not included in the preceding list, and destinations not appended to the default stream, don't count toward this limit.
View an updated eventstream
Confirm that the Azure IoT Hub source is added to your eventstream on the canvas in the Edit mode. To implement this newly added IoT hub, select Publish on the ribbon.

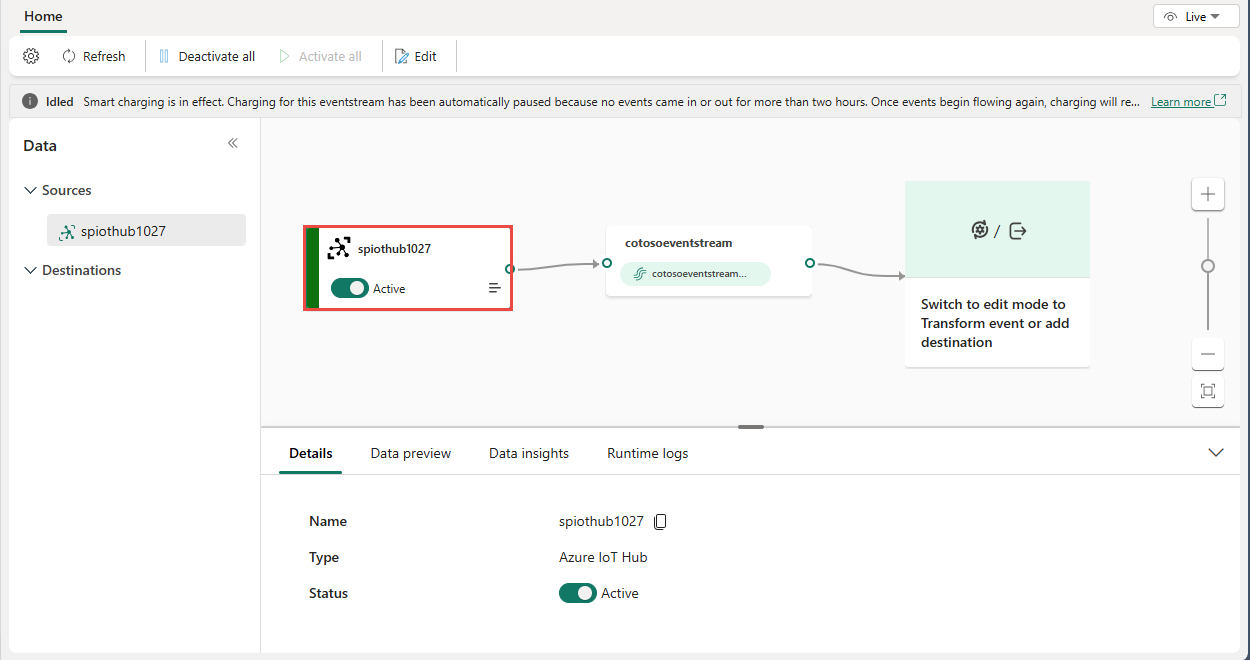

The IoT hub is available for visualization in the Live view. Select the IoT hub tile in the diagram to display a page similar to the following example.
Related content
- For a list of supported sources, see Add and manage an event source in an eventstream.
