Usar bancos de dados de seguidores

Anexar um banco de dados usando C#

Pacotes NuGet necessários

• Instale Microsoft.Azure.Management.Kusto.
• Instale Microsoft.Rest.ClientRuntime.Azure.Authentication para autenticação.

Exemplo de C#

var tenantId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Directory (tenant) ID
var clientId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Application ID
var clientSecret = "PlaceholderClientSecret"; //Client Secret
var followerSubscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var credentials = await ApplicationTokenProvider.LoginSilentAsync(tenantId, clientId, clientSecret);
var resourceManagementClient = new KustoManagementClient(credentials) { SubscriptionId = followerSubscriptionId };
var followerResourceGroupName = "followerResourceGroup";
var followerClusterName = "follower";
var attachedDatabaseConfigurationName = "attachedDatabaseConfiguration"
var leaderSubscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var leaderResourceGroup = "leaderResourceGroup";
var leaderClusterName = "leader";
var attachedDatabaseConfigurationData = new AttachedDatabaseConfiguration
{
    ClusterResourceId = $"/subscriptions/{leaderSubscriptionId}/resourceGroups/{leaderResourceGroup}/providers/Microsoft.Kusto/Clusters/{leaderClusterName}",
    DatabaseName = "<databaseName>", // Can be specific database name or * for all databases
    DefaultPrincipalsModificationKind = "Union",
    Location = "North Central US"
};
// Table level sharing properties are not supported when using '*' all databases notation.
if (attachedDatabaseConfigurationData.DatabaseName != "*")
{
    // Set up the table level sharing properties - the following is just an example.
    attachedDatabaseConfigurationData.TableLevelSharingProperties = new TableLevelSharingProperties(
        tablesToInclude:new List<string> { "table1" },
        tablesToExclude:new List<string> { "table2" },
        externalTablesToInclude:new List<string> { "exTable1" },
        externalTablesToExclude:new List<string> { "exTable2" },
        materializedViewsToInclude:new List<string> { "matTable1" },
        materializedViewsToExclude:new List<string> { "matTable2" }
    );
}
await resourceManagementClient.AttachedDatabaseConfigurations.CreateOrUpdateAsync(
    followerResourceGroupName, followerClusterName, attachedDatabaseConfigurationName, attachedDatabaseConfigurationData
);

Anexar um banco de dados usando Python

Módulos de pré-requisito

pip install azure-common
pip install azure-mgmt-kusto

Exemplo de Python

from azure.mgmt.kusto import KustoManagementClient
from azure.mgmt.kusto.models import AttachedDatabaseConfiguration
from azure.common.credentials import ServicePrincipalCredentials
import datetime

#Directory (tenant) ID
tenant_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Application ID
client_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Client Secret
client_secret = "xxxxxxxxxxxxxx"
follower_subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
leader_subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
credentials = ServicePrincipalCredentials(
        client_id=client_id,
        secret=client_secret,
        tenant=tenant_id
    )
kusto_management_client = KustoManagementClient(credentials, follower_subscription_id)

follower_resource_group_name = "followerResourceGroup"
leader_resource_group_name = "leaderResourceGroup"
follower_cluster_name = "follower"
leader_cluster_name = "leader"
attached_database_Configuration_name = "uniqueNameForAttachedDatabaseConfiguration"
database_name  = "db" # Can be specific database name or * for all databases
default_principals_modification_kind  = "Union"
location = "North Central US"
cluster_resource_id = "/subscriptions/" + leader_subscription_id + "/resourceGroups/" + leader_resource_group_name + "/providers/Microsoft.Kusto/Clusters/" + leader_cluster_name
table_level_sharing_properties = None
if (database_name != "*"):
    #Set up the table level sharing properties - the following is just an example.
    tables_to_include = ["table1", "table2", "table3"]
    external_tables_to_exclude =  ["Logs*"]
    table_level_sharing_properties = TableLevelSharingProperties(tables_to_include = tables_to_include, external_tables_to_exclude = external_tables_to_exclude)


attached_database_configuration_properties = AttachedDatabaseConfiguration(cluster_resource_id = cluster_resource_id, database_name = database_name, default_principals_modification_kind = default_principals_modification_kind, location = location, table_level_sharing_properties = table_level_sharing_properties)

#Returns an instance of LROPoller, see https://learn.microsoft.com/python/api/msrest/msrest.polling.lropoller?view=azure-python
poller = kusto_management_client.attached_database_configurations.create_or_update(follower_resource_group_name, follower_cluster_name, attached_database_Configuration_name, attached_database_configuration_properties)

Anexar um banco de dados usando o PowerShell

Módulo de pré-requisitos

Install : Az.Kusto

Exemplo do PowerShell

$FollowerClustername = 'follower'
$FollowerClusterSubscriptionID = 'xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx'
$FollowerResourceGroupName = 'followerResourceGroup'
$DatabaseName = "db"  ## Can be specific database name or * for all databases
$LeaderClustername = 'leader'
$LeaderClusterSubscriptionID = 'xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx'
$LeaderClusterResourceGroup = 'leaderResourceGroup'
$DefaultPrincipalsModificationKind = 'Union'
##Construct the LeaderClusterResourceId and Location
$getleadercluster = Get-AzKustoCluster -Name $LeaderClustername -ResourceGroupName $LeaderClusterResourceGroup -SubscriptionId $LeaderClusterSubscriptionID -ErrorAction Stop
$LeaderClusterResourceid = $getleadercluster.Id
$Location = $getleadercluster.Location
##Handle the config name if all databases needs to be followed
if($DatabaseName -eq '*')  {
        $configname = $FollowerClustername + 'config'
       }
else {
        $configname = $DatabaseName
     }
##Table level sharing is not supported when using '*' all databases notation. If you use the all database notation please remove all table level sharing lines from the powershell command.
New-AzKustoAttachedDatabaseConfiguration -ClusterName $FollowerClustername `
    -Name $configname `
    -ResourceGroupName $FollowerResourceGroupName `
    -SubscriptionId $FollowerClusterSubscriptionID `
    -DatabaseName $DatabaseName `
    -ClusterResourceId $LeaderClusterResourceid `
    -DefaultPrincipalsModificationKind $DefaultPrincipalsModificationKind `
    -Location $Location `
    -TableLevelSharingPropertyTablesToInclude "table1", "table2", "table3" `
    -TableLevelSharingPropertyExternalTablesToExclude "Logs*" `
    -ErrorAction Stop

Anexar um banco de dados usando um modelo do Azure Resource Manager

Você pode usar um modelo do Azure Resource Manager para anexar um banco de dados a um cluster existente.

Use as seguintes etapas para anexar um banco de dados:

1. Crie um modelo usando as informações da tabela a seguir para ajudá-lo a configurá-lo.

   Parâmetro	Descrição	Exemplo
   followerClusterName	O nome do grupo de seguidores; onde o modelo será implantado.
   attachedDatabaseConfigurationsName	O nome do objeto de configurações de banco de dados anexado. O nome pode ser qualquer cadeia de caracteres exclusiva no nível do cluster.
   Nome do banco de dados	O nome do banco de dados a ser utilizado. Para seguir todas as bases de dados do líder, use '*'.
   leaderClusterResourceId	O ID do recurso do cluster líder.
   defaultPrincipalsModificationKind	O tipo de modificação principal padrão.	Pode ser Union, Replace, ou None. Para obter mais informações sobre o tipo de modificação principal padrão, consulte comando principal modification kind control.
   tabelasParaIncluir	A lista de tabelas a incluir. Para incluir todas as tabelas começando com 'Logs', use ["Logs*"].	["table1ToInclude", "table2ToInclude"]
   tabelasToExclude	A lista de tabelas a excluir. Para excluir todas as tabelas, use ["*"].	["table1ToExclude", "table2ToExclude"]
   externalTablesToInclude	A lista de tabelas a incluir. Para incluir todas as tabelas externas começando com 'Logs', use ["Logs*"].	["ExternalTable1ToInclude", "ExternalTable2ToInclude"]
   externalTablesToExclude	A lista de tabelas a excluir. Para excluir todas as tabelas externas, use ["*"].	["ExternalTable1ToExclude", "ExternalTable2ToExclude"]
   materializedViewsToInclude	A lista de pontos de vista materializados a incluir. Para incluir todas as visualizações materializadas começando com 'Logs', use ["Logs*"].	["Mv1ToInclude", "Mv2ToInclude"]
   materializedViewsToExclude	A lista de pontos de vista materializados a excluir. Para excluir todas as visualizações materializadas, use ["*"].	["Mv11ToExclude", "Mv22ToExclude"]
   funçõesParaIncluir	A lista de funções a incluir.	["FunctionToInclude"]
   funçõesToExclude	A lista de funções a excluir.	["FunctionToExclude"]
   localização	A localização de todos os recursos. O líder e o seguidor devem estar no mesmo local.

   {
       "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
       "contentVersion": "1.0.0.0",
       "parameters": {
           "followerClusterName": {
               "type": "string",
               "defaultValue": "",
               "metadata": {
                   "description": "Name of the cluster to which the database will be attached."
               }
           },
           "attachedDatabaseConfigurationsName": {
               "type": "string",
               "defaultValue": "",
               "metadata": {
                   "description": "Name of the attached database configurations to create."
               }
           },
           "databaseName": {
               "type": "string",
               "defaultValue": "",
               "metadata": {
                   "description": "The name of the database to follow. You can follow all databases by using '*'."
               }
           },
           "leaderClusterResourceId": {
               "type": "string",
               "defaultValue": "",
               "metadata": {
                   "description": "The resource ID of the leader cluster."
               }
           },
           "defaultPrincipalsModificationKind": {
               "type": "string",
               "defaultValue": "Union",
               "metadata": {
                   "description": "The default principal modification kind."
               }
           },
           "tablesToInclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of tables to include. Not supported when following all databases."
               }
           },
           "tablesToExclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of tables to exclude. Not supported when following all databases."
               }
           },
           "externalTablesToInclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of external tables to include. Not supported when following all databases."
               }
           },
           "externalTablesToExclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of external tables to exclude. Not supported when following all databases."
               }
           },
           "materializedViewsToInclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of materialized views to include. Not supported when following all databases."
               }
           },
           "materializedViewsToExclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of materialized views to exclude. Not supported when following all databases."
               }
           },
           "functionsToInclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of functions to include."
               }
           },
           "functionsToExclude": {
               "type": "array",
               "defaultValue": [],
               "metadata": {
                   "description": "The list of functions to exclude."
               }
           },
           "location": {
               "type": "string",
               "defaultValue": "",
               "metadata": {
                   "description": "Location for all resources."
               }
           }
       },
       "variables": {},
       "resources": [
           {
               "name": "[concat(parameters('followerClusterName'), '/', parameters('attachedDatabaseConfigurationsName'))]",
               "type": "Microsoft.Kusto/clusters/attachedDatabaseConfigurations",
               "apiVersion": "2021-01-01",
               "location": "[parameters('location')]",
               "properties": {
                   "databaseName": "[parameters('databaseName')]",
                   "clusterResourceId": "[parameters('leaderClusterResourceId')]",
                   "defaultPrincipalsModificationKind": "[parameters('defaultPrincipalsModificationKind')]",
                   "tableLevelSharingProperties":{
                       "tablesToInclude": "[parameters('tablesToInclude')]",
                       "tablesToExclude": "[parameters('tablesToExclude')]",
                       "externalTablesToInclude": "[parameters('externalTablesToInclude')]",
                       "externalTablesToExclude": "[parameters('externalTablesToExclude')]",
                       "materializedViewsToInclude": "[parameters('materializedViewsToInclude')]",
                       "materializedViewsToExclude": "[parameters('materializedViewsToExclude')]",
                       "functionsToInclude": "[parameters('functionsToInclude')]",
                       "functionsToExclude": "[parameters('functionsToExclude')]"
                   }
               }
           }
       ]
   }

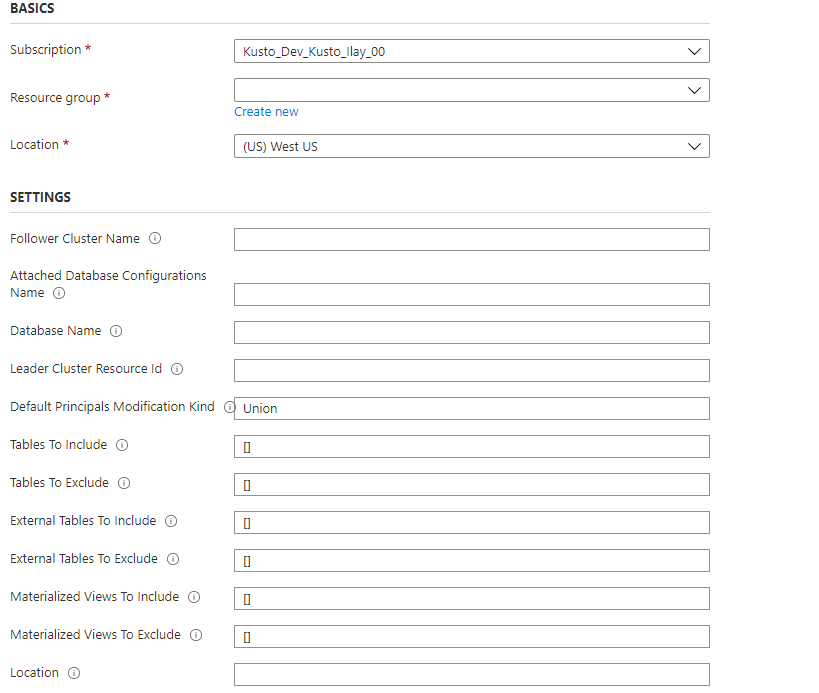

2. Implante o modelo do Azure Resource Manager usando o portal do Azure ou o PowerShell.



Desanexe o banco de dados de seguidores anexado do cluster de seguidores usando C#**

O cluster de seguidores pode desanexar qualquer banco de dados de seguidores anexado da seguinte maneira:

var tenantId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Directory (tenant) ID
var clientId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Application ID
var clientSecret = "PlaceholderClientSecret"; //Client Secret
var followerSubscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var credentials = await ApplicationTokenProvider.LoginSilentAsync(tenantId, clientId, clientSecret);
var resourceManagementClient = new KustoManagementClient(credentials) { SubscriptionId = followerSubscriptionId };
var followerResourceGroupName = "testrg";
//The cluster and database attached database configuration are created as part of the prerequisites
var followerClusterName = "follower";
var attachedDatabaseConfigurationsName = "attachedDatabaseConfiguration";
await resourceManagementClient.AttachedDatabaseConfigurations.DeleteAsync(
    followerResourceGroupName, followerClusterName, attachedDatabaseConfigurationsName
);

Desanexar o banco de dados de seguidores anexado do cluster de líderes usando C#

O cluster líder pode desanexar qualquer banco de dados anexado da seguinte maneira:

var tenantId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Directory (tenant) ID
var clientId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Application ID
var clientSecret = "PlaceholderClientSecret"; //Client Secret
var leaderSubscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var credentials = await ApplicationTokenProvider.LoginSilentAsync(tenantId, clientId, clientSecret);
var resourceManagementClient = new KustoManagementClient(credentials) { SubscriptionId = leaderSubscriptionId };
var leaderResourceGroupName = "testrg";
var leaderClusterName = "leader";
var followerSubscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var followerResourceGroupName = "followerResourceGroup";
//The cluster and attached database configuration that are created as part of the Prerequisites
var followerClusterName = "follower";
var attachedDatabaseConfigurationsName = "attachedDatabaseConfiguration";
var followerDatabaseDefinition = new FollowerDatabaseDefinition
{
    ClusterResourceId = $"/subscriptions/{followerSubscriptionId}/resourceGroups/{followerResourceGroupName}/providers/Microsoft.Kusto/Clusters/{followerClusterName}",
    AttachedDatabaseConfigurationName = attachedDatabaseConfigurationsName
};
await resourceManagementClient.Clusters.DetachFollowerDatabasesAsync(
    leaderResourceGroupName, leaderClusterName, followerDatabaseDefinition
);

Desanexe o banco de dados de seguidores anexado do cluster de seguidores usando Python

O cluster de seguidores pode desanexar qualquer banco de dados anexado da seguinte maneira:

from azure.mgmt.kusto import KustoManagementClient
from azure.common.credentials import ServicePrincipalCredentials
import datetime

#Directory (tenant) ID
tenant_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Application ID
client_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Client Secret
client_secret = "xxxxxxxxxxxxxx"
follower_subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
credentials = ServicePrincipalCredentials(
        client_id=client_id,
        secret=client_secret,
        tenant=tenant_id
    )
kusto_management_client = KustoManagementClient(credentials, follower_subscription_id)

follower_resource_group_name = "followerResourceGroup"
follower_cluster_name = "follower"
attached_database_configurationName = "uniqueName"

#Returns an instance of LROPoller, see https://learn.microsoft.com/python/api/msrest/msrest.polling.lropoller?view=azure-python
poller = kusto_management_client.attached_database_configurations.delete(follower_resource_group_name, follower_cluster_name, attached_database_configurationName)

Desanexar o banco de dados de seguidores anexado do cluster de líderes usando Python

O cluster líder pode desanexar qualquer banco de dados anexado da seguinte maneira:

from azure.mgmt.kusto import KustoManagementClient
from azure.mgmt.kusto.models import FollowerDatabaseDefinition
from azure.common.credentials import ServicePrincipalCredentials
import datetime

#Directory (tenant) ID
tenant_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Application ID
client_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Client Secret
client_secret = "xxxxxxxxxxxxxx"
follower_subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
leader_subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
credentials = ServicePrincipalCredentials(
        client_id=client_id,
        secret=client_secret,
        tenant=tenant_id
    )
kusto_management_client = KustoManagementClient(credentials, follower_subscription_id)

follower_resource_group_name = "followerResourceGroup"
leader_resource_group_name = "leaderResourceGroup"
follower_cluster_name = "follower"
leader_cluster_name = "leader"
attached_database_configuration_name = "uniqueName"
location = "North Central US"
cluster_resource_id = "/subscriptions/" + follower_subscription_id + "/resourceGroups/" + follower_resource_group_name + "/providers/Microsoft.Kusto/Clusters/" + follower_cluster_name

#Returns an instance of LROPoller, see https://learn.microsoft.com/python/api/msrest/msrest.polling.lropoller?view=azure-python
poller = kusto_management_client.clusters.detach_follower_databases(resource_group_name = leader_resource_group_name, cluster_name = leader_cluster_name, cluster_resource_id = cluster_resource_id, attached_database_configuration_name = attached_database_configuration_name)

Desanexar um banco de dados usando o PowerShell

Módulo de pré-requisitos

Install : Az.Kusto

Exemplo

$FollowerClustername = 'follower'
$FollowerClusterSubscriptionID = 'xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx'
$FollowerResourceGroupName = 'followerResourceGroup'
$DatabaseName = "sanjn"  ## Can be specific database name or * for all databases

##Construct the Configuration name
$confignameraw = (Get-AzKustoAttachedDatabaseConfiguration -ClusterName $FollowerClustername -ResourceGroupName $FollowerResourceGroupName -SubscriptionId $FollowerClusterSubscriptionID) | Where-Object {$_.DatabaseName -eq $DatabaseName }
$configname =$confignameraw.Name.Split("/")[1]

Remove-AzKustoAttachedDatabaseConfiguration -ClusterName $FollowerClustername -Name $configname -ResourceGroupName $FollowerResourceGroupName -SubscriptionId $FollowerClusterSubscriptionID

Desanexe o banco de dados de seguidores usando C#, Python ou PowerShell.
