GraphRandomErrorPlugin

Fails requests made to Microsoft Graph with random errors.

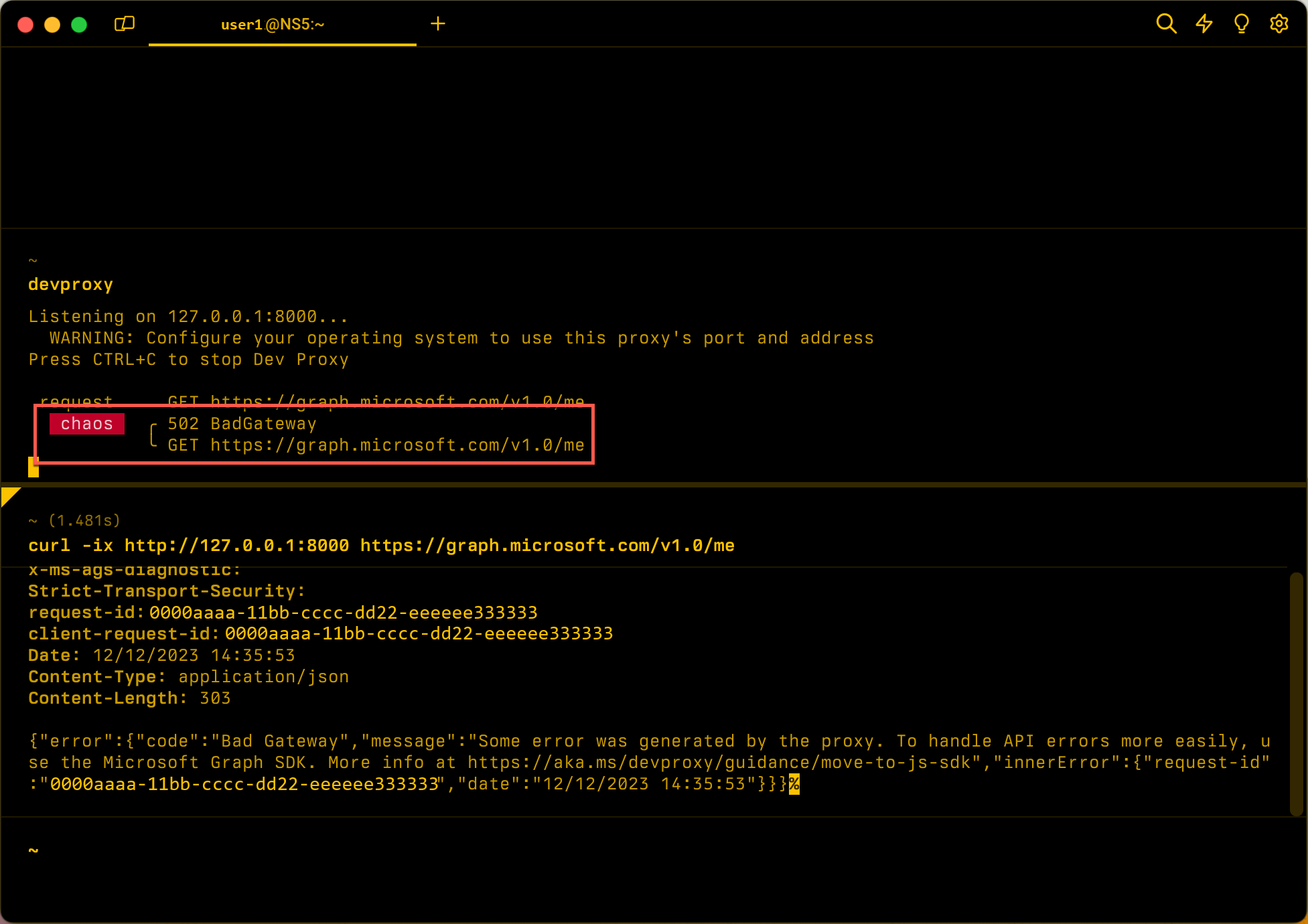

Screenshot of a command prompt with Dev Proxy simulating a random error for a Microsoft Graph request.

Configuration example

{
  "$schema": "https://raw.githubusercontent.com/dotnet/dev-proxy/main/schemas/v2.0.0/rc.schema.json",
  "plugins": [
    {
      "name": "GraphRandomErrorPlugin",
      "enabled": true,
      "pluginPath": "~appFolder/plugins/DevProxy.Plugins.dll",
      "configSection": "graphRandomErrorPlugin"
    }
  ],
  "graphRandomErrorPlugin": {
    "$schema": "https://raw.githubusercontent.com/dotnet/dev-proxy/main/schemas/v2.0.0/graphrandomerrorplugin.schema.json",
    "allowedErrors": [ 429, 500, 502, 503, 504, 507 ]
  }
}

Configuration properties

Property Description Default
allowedErrors List of HTTP status codes that Dev Proxy might produce. 429 500 502 503 504 507
rate The percentage of requests to fail with a random error. Value between 0 and 100. 50
retryAfterInSeconds Value of the Retry-After header in seconds. 5

Command line options

Name Description Default
-a, --allowed-errors List of HTTP status codes that Dev Proxy might produce. 429 500 502 503 504 507
-f, --failure-rate <failure rate> The percentage of requests to fail with a random error. Value between 0 and 100. 50

HTTP error status codes used by Microsoft Graph

Microsoft Graph uses the following HTTP status codes.

Tip

Descriptions from HTTP response status codes

Code Name Description
429 Too Many Requests Indicates the user has sent too many requests in a given amount of time ("rate limiting"). A Retry-After header might be included to this response indicating how long to wait before making a new request.
500 Internal Server Error Indicates that the server encountered an unexpected condition that prevented it from fulfilling the request. This error response is a generic "catch-all" response. Usually, this indicates the server can't find a better 5xx error code to response.
502 Bad Gateway Indicates that the server, while acting as a gateway or proxy, received an invalid response from the upstream server.
503 Service Unavailable Indicates that the server isn't ready to handle the request. Common causes are a server that is down for maintenance or that is overloaded. This response should be used for temporary conditions and the Retry-After HTTP header should, if possible, contain the estimated time for the recovery of the service.
504 Gateway Timeout Indicates that the server, while acting as a gateway or proxy, didn't get a response in time from the upstream server that it needed in order to complete the request.
507 Insufficient Storage Might be given in the context of the Web Distributed Authoring and Versioning (WebDAV) protocol (see RFC 4918). It indicates that a method couldn't be performed because the server can't store the representation needed to successfully complete the request.

Next step

Simulate errors from Microsoft Graph APIs
