OpenApiSpecGeneratorPlugin

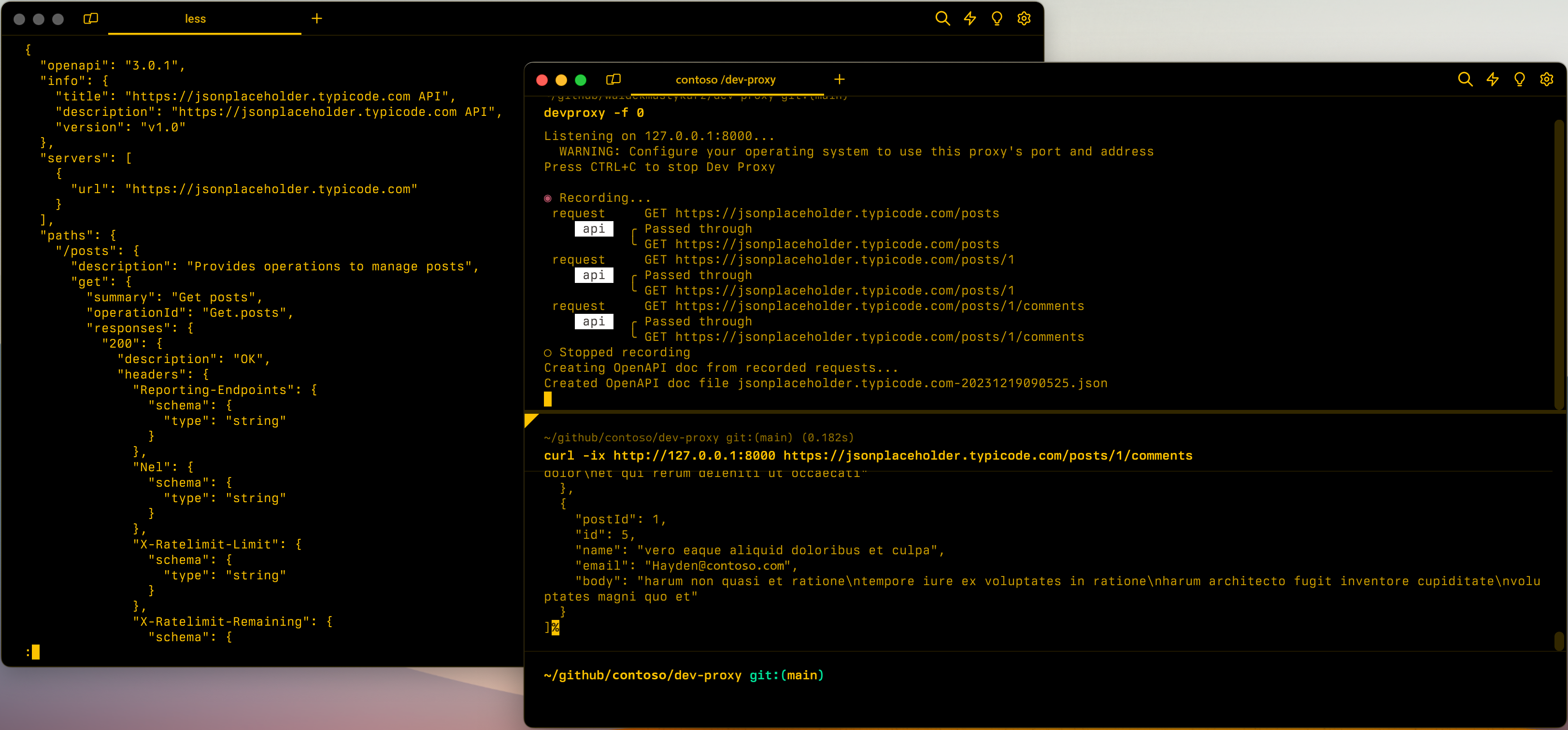

Generates OpenAPI spec in JSON format from the intercepted requests and responses.

Configuration example

{
  "$schema": "https://raw.githubusercontent.com/dotnet/dev-proxy/main/schemas/v2.0.0/rc.schema.json",
  "plugins": [
    {
      "name": "OpenApiSpecGeneratorPlugin",
      "enabled": true,
      "pluginPath": "~appFolder/plugins/DevProxy.Plugins.dll",
      "configSection": "openApiSpecGeneratorPlugin"
    }
  ],
  "openApiSpecGeneratorPlugin": {
    "$schema": "https://raw.githubusercontent.com/dotnet/dev-proxy/main/schemas/v2.0.0/openapispecgeneratorplugin.schema.json",
    "includeOptionsRequests": false,
    "ignoreResponseTypes": false,
    "specVersion": "v3_0",
    "specFormat": "Json",
    "includeParameters": [
      "api-version"
    ]
  }
}

Configuration properties

Property	Description	Default
`includeOptionsRequests`	Determines whether to include `OPTIONS` requests in the generated OpenAPI spec	`false`
`ignoreResponseTypes`	Determines whether to ignore response types in the generated OpenAPI spec.	`false`
`specVersion`	Determines which version to use for the generated OpenAPI spec. Can be set to `v2_0` or `v3_0`	`v3_0`
`specFormat`	Determines which format to use for the generated OpenAPI spec. Can be set to `Json` or `Yaml`	`Json`
`includeParameters`	Determines the list of query string parameters to include in the generated OpenAPI spec, along with their default values.	[]

Command line options

None

Remarks

To create better OpenAPI specs, consider using a local language model with Dev Proxy. Using a local language model, the OpenApiSpecGeneratorPlugin generates clearer operation IDs and descriptions, giving you a better starting point for your OpenAPI spec. To use a local language model with the OpenApiSpecGeneratorPlugin, enable the language model in the configuration file. For more information, see Use a local language model.

Next step

Generate an OpenAPI spec
