Quickstart: Orchestration workflow

Orchestration workflow, offered by Azure Language in Foundry Tools, enables you to integrate multiple language models—such as Conversational Language Understanding (CLU) and Custom question answering (CQA)—into a single project. This functionality intelligently routes user requests to the most suitable model via a unified endpoint, providing seamless and sophisticated conversational experiences across various language services tasks.

This quickstart walks you through the essentials of working with orchestration workflow projects Following each step builds a strong foundation in the core concepts. Completing this quickstart provides you with hands-on experience, preparing you to confidently tackle orchestration workflow projects in your own environment.

Prerequisites

Note

  • If you already have an Azure Language in Foundry Tools or multi-service resource you can continue to use those existing Language resources within the Microsoft Foundry portal via a Foundry Hub project.
  • For more information, see How to use Foundry Tools in the Foundry portal.
  • We highly recommended that you use a Foundry resource in the Foundry; however, you can also follow these instructions using a Language resource.

Get started

After you create your Foundry resource, you can initiate an orchestration workflow project in the Microsoft Foundry. This project serves as a dedicated workspace for developing custom machine learning models using your data. Access to the project is restricted to you and others who have permissions for the associated Foundry resource.

For this quickstart, you can complete the Conversational Language Understanding quickstart or Custom question answering (CQA) to establish a project for use in our subsequent orchestration workflow quickstart steps.

Let's begin:

  1. Navigate to the Foundry.

  2. If you aren't already signed in, the portal prompts you to do so with your Azure credentials.

  3. Once signed in, you can create or access your existing projects within Foundry.

  4. If you're not already in your CLU or CQA project, select it now.

Create an orchestration workflow project

  1. Select Fine-tuning from the left navigation pane.

  2. From the window that appears, select the AI Service fine-tuning tab and then the + Fine-tune button.

    Screenshot of create fine-tuning button in the Foundry.

  3. From the window that appears, select Conversational Orchestration Workflow as the task type, then select Next.

    Screenshot of selecting orchestration workflow in the Foundry.

  4. In the Create service fine-tuning window, you can choose to create a new task or import an existing one. Complete all required fields, then select Create:

    • Name: Provide a unique name for your orchestration workflow project.
    • Language: Select the language for your project.
    • Description: Optionally, provide a description for your project.

  5. After creating the orchestration workflow project, you'll be directed to the project overview page. Here, you can manage your project settings, monitor training progress, and access various tools to enhance your model.

  1. To add existing CLU or CQA models to your orchestration workflow, navigate to the Link tasks button within your project. Here, you can add intents and entities from your existing models to the orchestration workflow.

    Screenshot of orchestration workflow overview in the Foundry.

  2. Link your tasks by selecting from the Task type and Fine-tuning task name dropdown menus. The Intent name field automatically populates with the same name as the fine-tuning task name field. Once everything is set, select Add to continue.

    Screenshot of linking tasks in orchestration workflow in the Foundry.

Add training data

  1. Navigate to the Manage Data tab and add your utterances file. For this project, you can download our sample utterances file which comes preconfigured with labeled utterances.

  2. After uploading your utterances file, select the unlinked intents from the Insights pane. This action allows you to map these intents to the appropriate linked tasks within your orchestration workflow.

    Screenshot of unlinked intents in orchestration workflow in the Foundry.

Train your model

  1. Navigate to the Train model section and select the Train model button to start training your orchestration workflow with the linked tasks and uploaded utterances. This process may take some time depending on the size of your dataset and the complexity of your model.

    Screenshot of training orchestration button in the Foundry.

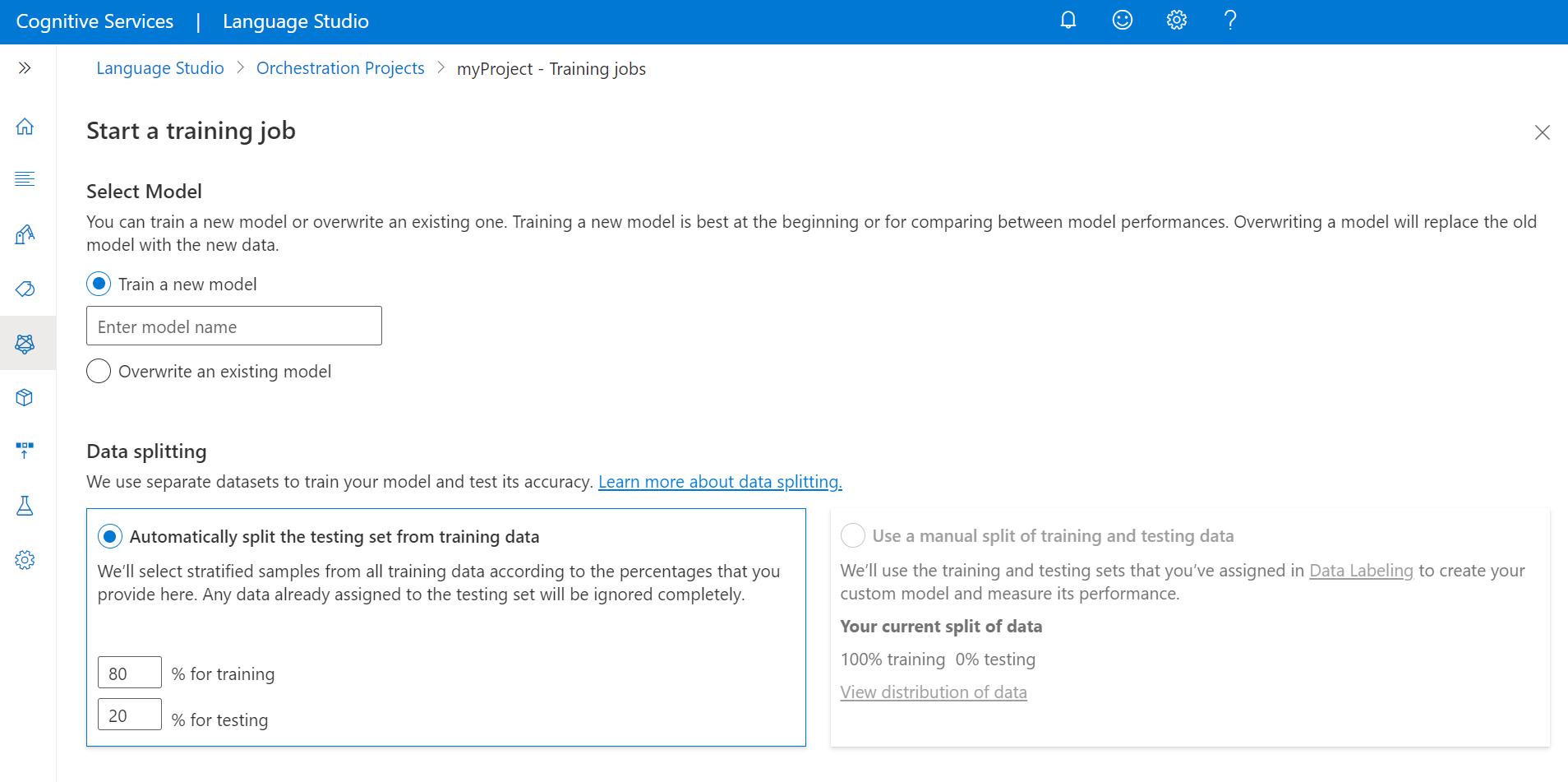

  2. In the Train a new model window, provide a name for your model, keep the default standard training mode, and select Next to proceed.

    Screenshot of training orchestration model window in the Foundry.

  3. In the data splitting window, you can choose to either use the default data split or customize it according to your needs. After making your selection, select Next to continue.

  4. Review your selections in the summary window, and if everything looks correct, select Create to initiate the training process for your orchestration workflow model.

    Screenshot of orchestration model training summary in the Foundry.

  5. After initiating the training process, you can monitor the progress and view detailed metrics on the training dashboard. Once the training is complete, your orchestration workflow model is ready for deployment and testing.

Deploy your model

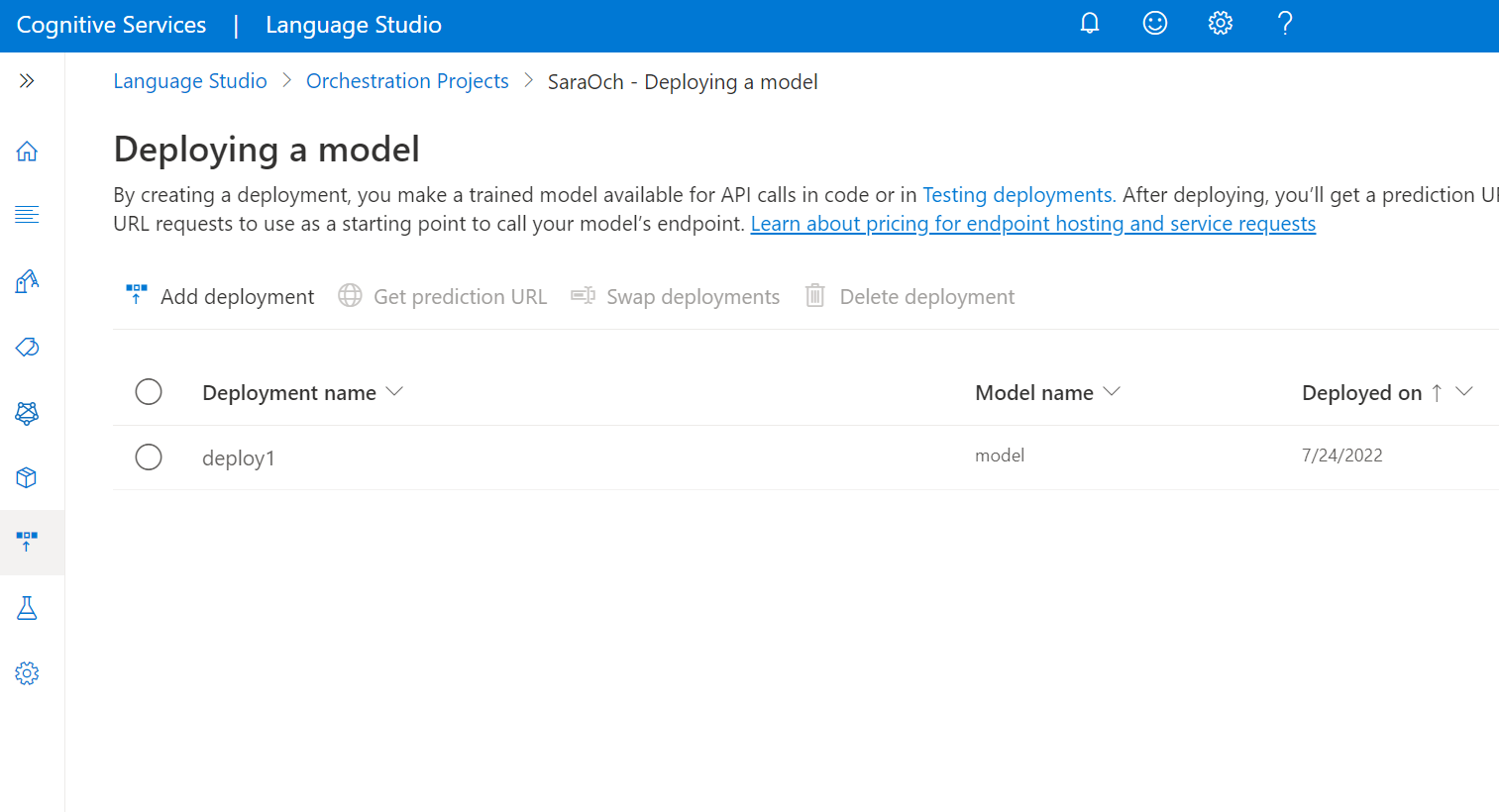

Deploy your trained model by navigating to the Deploy model section and selecting the Deploy button. Follow the prompts to complete the deployment process.

Screenshot of deploying orchestration model button in the Foundry.

Test your model

After your model successfully deploys, you can test it directly within the Foundry interface. Navigate to the Test in playground section, input various utterances, and observe how your orchestration workflow routes requests to the appropriate linked tasks.

That's it, congratulations!

Clean up resources

If you no longer need your project, you can delete it from the Foundry.

  1. Navigate to the Foundry home page. Initiate the authentication process by signing in, unless you already completed this step and your session is active.

  2. Select the project that you want to delete from the Keep building with Foundry

  3. Select Management center.

  4. Select Delete project.

Prerequisites

Create a Language resource from Azure portal

Create a new resource from the Azure portal

  1. Go to the Azure portal to create a new Azure Language in Foundry Tools resource.

  2. Select Continue to create your resource

  3. Create a Language resource with following details.

    Instance detail Required value
    Region One of the supported regions.
    Name A name for your Language resource.
    Pricing tier One of the supported pricing tiers.

Get your resource keys and endpoint

  1. Go to your resource overview page in the Azure portal.

  2. From the menu on the left side, select Keys and Endpoint. The endpoint and key are used for API requests.

    A screenshot showing the key and endpoint page in the Azure portal

Create an orchestration workflow project

Once you have a Language resource created, create an orchestration workflow project. A project is a work area for building your custom ML models based on your data. Your project can only be accessed by you and others who have access to Azure Language resource being used.

For this quickstart, complete the CLU quickstart to create a CLU project to be used in orchestration workflow.

Submit a PATCH request using the following URL, headers, and JSON body to create a new project.

Request URL

Use the following URL when creating your API request. Replace the placeholder values with your own values.

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. myProject
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Body

Use the following sample JSON as your body.

{
  "projectName": "{PROJECT-NAME}",
  "language": "{LANGUAGE-CODE}",
  "projectKind": "Orchestration",
  "description": "Project description"
 }
Key Placeholder Value Example
projectName {PROJECT-NAME} The name of your project. This value is case-sensitive. EmailApp
language {LANGUAGE-CODE} A string specifying the language code for the utterances used in your project. If your project is a multilingual project, choose the language code for most of the utterances. en-us

Build schema

After completing the CLU quickstart, and creating an orchestration project, the next step is to add intents.

Submit a POST request using the following URL, headers, and JSON body to import your project.

Request URL

Use the following URL when creating your API request. Replace the placeholder values with your own values.

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/:import?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. myProject
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Body

Note

Each intent should only be of one type only from (CLU,LUIS and qna)

Use the following sample JSON as your body.

{
  "projectFileVersion": "{API-VERSION}",
  "stringIndexType": "Utf16CodeUnit",
  "metadata": {
    "projectKind": "Orchestration",
    "settings": {
      "confidenceThreshold": 0
    },
    "projectName": "{PROJECT-NAME}",
    "description": "Project description",
    "language": "{LANGUAGE-CODE}"
  },
  "assets": {
    "projectKind": "Orchestration",
    "intents": [
      {
        "category": "string",
        "orchestration": {
          "kind": "luis",
          "luisOrchestration": {
            "appId": "00001111-aaaa-2222-bbbb-3333cccc4444",
            "appVersion": "string",
            "slotName": "string"
          },
          "cluOrchestration": {
            "projectName": "string",
            "deploymentName": "string"
          },
          "qnaOrchestration": {
            "projectName": "string"
          }
        }
      }
    ],
    "utterances": [
      {
        "text": "Trying orchestration",
        "language": "{LANGUAGE-CODE}",
        "intent": "string"
      }
    ]
  }
}
Key Placeholder Value Example
api-version {API-VERSION} The version of the API you're calling. The version used here must be the same API version in the URL. 2022-03-01-preview
projectName {PROJECT-NAME} The name of your project. This value is case-sensitive. EmailApp
language {LANGUAGE-CODE} A string specifying the language code for the utterances used in your project. If your project is a multilingual project, choose the language code for most of the utterances. en-us

Train your model

To train a model, you need to start a training job. The output of a successful training job is your trained model.

Create a POST request using the following URL, headers, and JSON body to submit a training job.

Request URL

Use the following URL when creating your API request. Replace the placeholder values with your own values.

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/:train?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. EmailApp
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Request body

Use the following object in your request. The model will be named MyModel once training is complete.

{
  "modelLabel": "{MODEL-NAME}",
  "trainingMode": "standard",
  "trainingConfigVersion": "{CONFIG-VERSION}",
  "evaluationOptions": {
    "kind": "percentage",
    "testingSplitPercentage": 20,
    "trainingSplitPercentage": 80
  }
}
Key Placeholder Value Example
modelLabel {MODEL-NAME} Your Model name. Model1
trainingMode standard Training mode. Only one mode for training is available in orchestration, which is standard. standard
trainingConfigVersion {CONFIG-VERSION} The training configuration model version. By default, the latest model version is used. 2022-05-01
kind percentage Split methods. Possible values are percentage or manual. See how to train a model for more information. percentage
trainingSplitPercentage 80 Percentage of your tagged data to be included in the training set. Recommended value is 80. 80
testingSplitPercentage 20 Percentage of your tagged data to be included in the testing set. Recommended value is 20. 20

Note

The trainingSplitPercentage and testingSplitPercentage are only required if Kind is set to percentage and the sum of both percentages should be equal to 100.

Once you send your API request, you receive a 202 response indicating success. In the response headers, extract the operation-location value formatted like this:

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/train/jobs/{JOB-ID}?api-version={API-VERSION}

You can use this URL to get the training job status.

Get Training Status

Training could take sometime between 10 and 30 minutes. You can use the following request to keep polling the status of the training job until it is successfully completed.

Use the following GET request to get the status of your model's training progress. Replace the placeholder values with your own values.

Request URL

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/train/jobs/{JOB-ID}?api-version={API-VERSION}
Placeholder Value Example
{YOUR-ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. EmailApp
{JOB-ID} The ID for locating your model's training status. It's in the location header value you received when submitted your training job. xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Response Body

Once you send the request, you get the following response. Keep polling this endpoint until the status parameter changes to "succeeded".

{
  "result": {
    "modelLabel": "{MODEL-LABEL}",
    "trainingConfigVersion": "{TRAINING-CONFIG-VERSION}",
    "estimatedEndDateTime": "2022-04-18T15:47:58.8190649Z",
    "trainingStatus": {
      "percentComplete": 3,
      "startDateTime": "2022-04-18T15:45:06.8190649Z",
      "status": "running"
    },
    "evaluationStatus": {
      "percentComplete": 0,
      "status": "notStarted"
    }
  },
  "jobId": "xxxxxx-xxxxx-xxxxxx-xxxxxx",
  "createdDateTime": "2022-04-18T15:44:44Z",
  "lastUpdatedDateTime": "2022-04-18T15:45:48Z",
  "expirationDateTime": "2022-04-25T15:44:44Z",
  "status": "running"
}
Key Value Example
modelLabel The model name Model1
trainingConfigVersion The training configuration version. By default, the latest version is used. 2022-05-01
startDateTime The time training started 2022-04-14T10:23:04.2598544Z
status The status of the training job running
estimatedEndDateTime Estimated time for the training job to finish 2022-04-14T10:29:38.2598544Z
jobId Your training job ID xxxxx-xxxx-xxxx-xxxx-xxxxxxxxx
createdDateTime Training job creation date and time 2022-04-14T10:22:42Z
lastUpdatedDateTime Training job last updated date and time 2022-04-14T10:23:45Z
expirationDateTime Training job expiration date and time 2022-04-14T10:22:42Z

Deploy your model

Generally after training a model you would review its evaluation details. In this quickstart, you will just deploy your model, and call the prediction API to query the results.

Submit deployment job

Create a PUT request using the following URL, headers, and JSON body to start deploying an orchestration workflow model.

Request URL

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/deployments/{DEPLOYMENT-NAME}?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. myProject
{DEPLOYMENT-NAME} The name for your deployment. This value is case-sensitive. staging
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Request Body

{
  "trainedModelLabel": "{MODEL-NAME}",
}
Key Placeholder Value Example
trainedModelLabel {MODEL-NAME} The model name that is assigned to your deployment. You can only assign successfully trained models. This value is case-sensitive. myModel

Once you send your API request, you receive a 202 response indicating success. In the response headers, extract the operation-location value formatted like this:

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/deployments/{DEPLOYMENT-NAME}/jobs/{JOB-ID}?api-version={API-VERSION}

You can use this URL to get the deployment job status.

Get deployment job status

Use the following GET request to get the status of your deployment job. Replace the placeholder values with your own values.

Request URL

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}/deployments/{DEPLOYMENT-NAME}/jobs/{JOB-ID}?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. myProject
{DEPLOYMENT-NAME} The name for your deployment. This value is case-sensitive. staging
{JOB-ID} The ID for locating your model's training status. It's in the location header value you received from the API in response to your model deployment request. xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Response Body

Once you send the request, you get the following response. Keep polling this endpoint until the status parameter changes to "succeeded".

{
    "jobId":"{JOB-ID}",
    "createdDateTime":"{CREATED-TIME}",
    "lastUpdatedDateTime":"{UPDATED-TIME}",
    "expirationDateTime":"{EXPIRATION-TIME}",
    "status":"running"
}

Query model

After your model is deployed, you can start using it to make predictions through the prediction API.

Once deployment succeeds, you can begin querying your deployed model for predictions.

Create a POST request using the following URL, headers, and JSON body to start testing an orchestration workflow model.

Request URL

{ENDPOINT}/language/:analyze-conversations?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Request Body

{
  "kind": "Conversation",
  "analysisInput": {
    "conversationItem": {
      "text": "Text1",
      "participantId": "1",
      "id": "1"
    }
  },
  "parameters": {
    "projectName": "{PROJECT-NAME}",
    "deploymentName": "{DEPLOYMENT-NAME}",
    "directTarget": "qnaProject",
    "targetProjectParameters": {
      "qnaProject": {
        "targetProjectKind": "QuestionAnswering",
        "callingOptions": {
          "context": {
            "previousUserQuery": "Meet Surface Pro 4",
            "previousQnaId": 4
          },
          "top": 1,
          "question": "App Service overview"
        }
      }
    }
  }
}

Response Body

Once you send the request, you get the following response for the prediction!

{
  "kind": "ConversationResult",
  "result": {
    "query": "App Service overview",
    "prediction": {
      "projectKind": "Orchestration",
      "topIntent": "qnaTargetApp",
      "intents": {
        "qnaTargetApp": {
          "targetProjectKind": "QuestionAnswering",
          "confidenceScore": 1,
          "result": {
            "answers": [
              {
                "questions": [
                  "App Service overview"
                ],
                "answer": "The compute resources you use are determined by the *App Service plan* that you run your apps on.",
                "confidenceScore": 0.7384000000000001,
                "id": 1,
                "source": "https://learn.microsoft.com/azure/app-service/overview",
                "metadata": {},
                "dialog": {
                  "isContextOnly": false,
                  "prompts": []
                }
              }
            ]
          }
        }
      }
    }
  }
}

Clean up resources

When you don't need your project anymore, you can delete your project using the APIs.

Create a DELETE request using the following URL, headers, and JSON body to delete a conversational language understanding project.

Request URL

{ENDPOINT}/language/authoring/analyze-conversations/projects/{PROJECT-NAME}?api-version={API-VERSION}
Placeholder Value Example
{ENDPOINT} The endpoint for authenticating your API request. https://<your-custom-subdomain>.cognitiveservices.azure.com
{PROJECT-NAME} The name for your project. This value is case-sensitive. myProject
{API-VERSION} The version of the API you're calling. 2023-04-01

Headers

Use the following header to authenticate your request.

Key Value
Ocp-Apim-Subscription-Key The key to your resource. Used for authenticating your API requests.

Once you send your API request, you receive a 202 response indicating success, which means your project is deleted.

Next steps

  • Last updated on
