Configure vaulted backup for Azure Data Lake Storage

This article describes how to configure vaulted backups for Azure Data Lake Storage using Azure portal.

Prerequisites

Before you configure vaulted backup for Azure Data Lake Storage, ensure the following prerequisites are met:

Note

  • This feature is currently available in specific regions only. See the supported regions.
  • Vaulted backup restores are only possible to a different storage account.

For more information about the supported scenarios, limitations, and availability, see the support matrix.

Configure vaulted backup for the Azure Data Lake Storage

You can configure backup on multiple Azure Data Lake Storage.

To configure vaulted backup, follow these steps:

  1. In the Azure portal, go to the Backup vault, and then select + Backup.

  2. On the Configure Backup pane, on the Basics tab, review the Datasource type is selected as Azure Data Lake Storage.

  3. On the Backup policy tab, under Backup policy, select the policy you want to use for data retention, and then select Next. If you want to create a new backup policy, select Create new. learn how to create a backup policy.

  4. On the Datasources tab, Select Add.

    Screenshot shows how to add resources for backup.

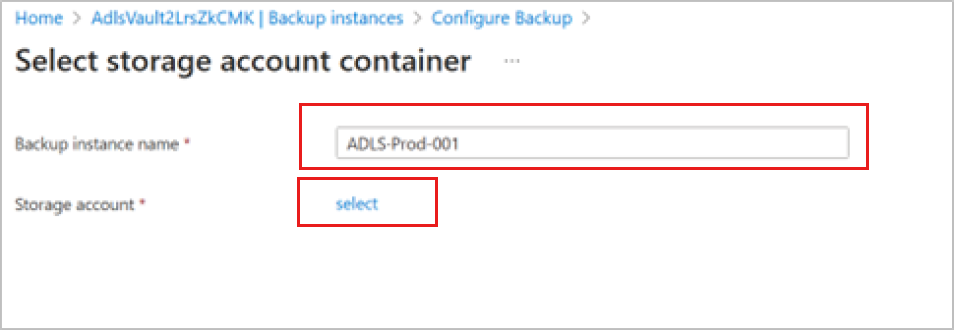

  5. On the Select storage account container pane, provide the Backup instance name, and then click select under Storage account.

    Screenshot shows how to provide the backup instance name.

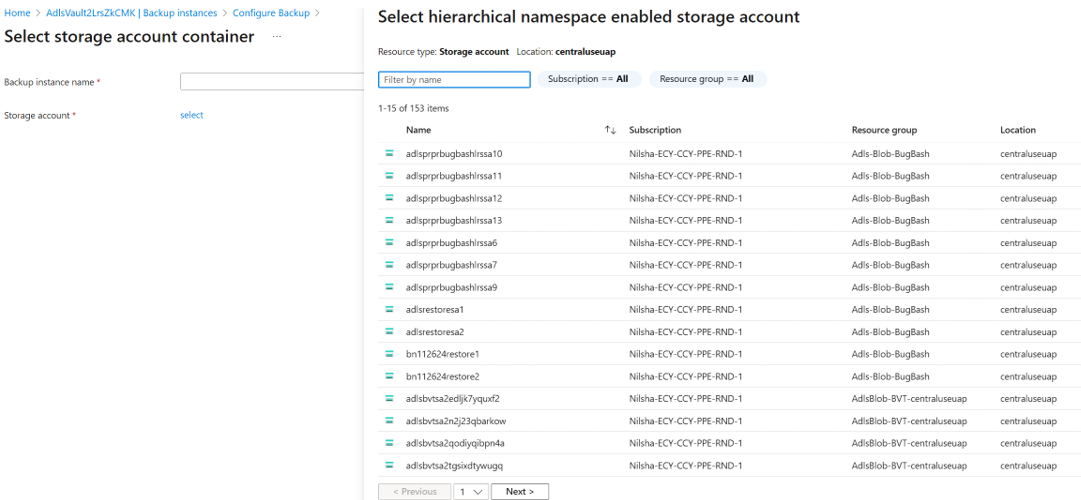

  6. On the Select hierarchical namespace enabled storage account pane, select the storage accounts with Azure Data Lake Storage across subscriptions from the list that are in the region same as the vault.

    Screenshot shows the selection of storage accounts.

  7. On the Select storage account container pane, you can back up all containers or select specific ones.

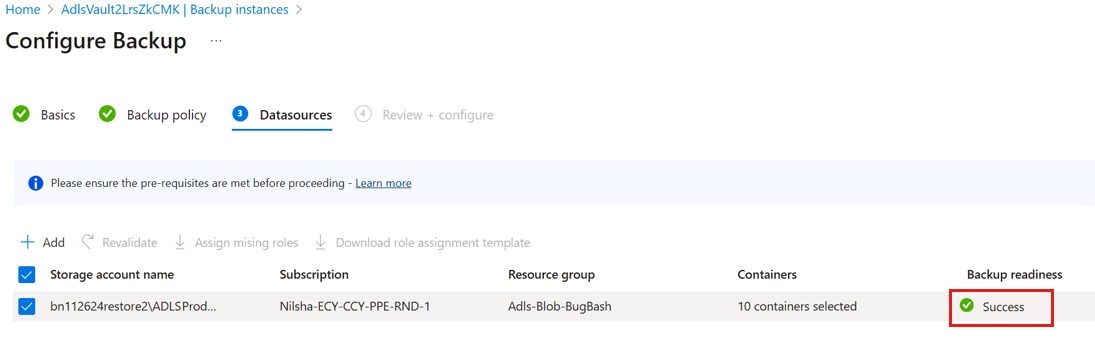

    After you add the resources, backup readiness validation starts. If the required roles are assigned, the validation succeeds with the Success message.

    Screenshot shows the success message for role assignments.

    Error messages appear when access permissions are missing. See the Grant permissions section.

    Validation errors appear if the selected storage accounts don't have the Storage Account Backup Contributor role. Review the error messages and take necessary actions.

    Error Cause Recommended action
    Role assignment not done The Storage account backup contributor role and the other required roles for the storage account to the vault aren't assigned. Select the roles, and then select Assign missing roles to automatically assign the required role to the Backup vault and trigger an auto revalidation.

    If the role propagation takes more than 10 minutes, then the validation might fail. In this scenario, you need to wait for a few minutes and select Revalidate to retry validation.

    You need to assign the following types of permissions for various operations:

    - Resource-level permissions: For backing up a single account within a resource group.
    - Resource group or Subscription-level permissions: For backing up multiple accounts within a resource group.
    - Higher-level permissions: For reducing the number of role assignments needed.

    The maximum count of role assignments supported at the subscription level is 4,000. Learn more about Azure Role-Based Access Control Limits.
    Insufficient permissions for role assignment The vault doesn't have the required role to configure backups, and you don't have enough permissions to assign the required role. Download the role assignment template, and then share with users with permissions to assign roles for storage accounts.

  8. Review the configuration details, and then select Configure Backup.

You can track the progress of the backup configuration under Backup instances. After the configuration of backup is complete, Azure Backup triggers the backup operation as per the backup policy schedule to create the recovery points. Backup might take a minimum of 30–40 minutes, as backups rely on snapshots, which are taken in every 15 minutes and require two snapshots to detect changes before triggering the backup.

Learn how to monitor backup jobs.

This article describes how to configure vaulted backups for Azure Data Lake Storage using PowerShell.

Prerequisites

Before you configure vaulted backup for Azure Data Lake Storage, ensure that the following prerequisites are met:

Configure vaulted backup for the Azure Data Lake Storage using PowerShell

After the vault and backup policy are created, configure vaulted backup for Azure Data Lake Storage by reviewing the following sections:

  1. Fetch the ARM ID of the storage account containing the Data Lake Storage to be protected
  2. Grant permissions to the Backup vault
  3. Trigger the request for backup configuration

Fetch the ARM ID of the storage account containing the Data Lake Storage to be protected

The Azure Resource Manager (ARM) ID of the storage account is required to configure vaulted backup for Azure Data Lake Storage. This ID identifies the storage account that contains the Data Lake Storage you want to protect. For example, use the storage account PSTestSA in the resource group adlsrg in a different subscription.

To fetch the ARM ID of the storage account, run the following example cmdlet:

$SAId = "/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx/resourcegroups/adlsrg/providers/Microsoft.Storage/storageAccounts/PSTestSA"

Grant permissions to the Backup vault on the storage account

The Backup vault requires permissions on the storage account to enable backups on Data Lake Storage present within the storage account. The system-assigned managed identity of the vault is used for assigning such permissions.

You need to assign the required permissions via Azure role-based access control (RBAC) to the created vault (represented by vault Managed System Identity (MSI)) and the relevant storage account.

Learn how to grant permissions to the Backup vault using Azure portal for Azure Data Lake Storage.

Trigger the request for vaulted backup configuration

After all the relevant permissions are set, configure Azure Date Lake Storage vaulted backup by running the following cmdlets:

  1. Create a new backup configuration object to specify the set of containers you want to back up.

    To back up all containers, pass the -IncludeAllContainer parameter. For specific containers, pass the list of containers to the -VaultedBackupContainer parameter.

    $backupConfig=New-AzDataProtectionBackupConfigurationClientObject -DatasourceType AzureDataLakeStorage -IncludeAllContainer -StorageAccountResourceGroupName "StorageRG" -StorageAccountName "testpscmd"

  2. Prepare the request by using the relevant vault, policy, storage account, and the backup configuration object you created using the Initialize-AzDataProtectionBackupInstance cmdlet.

    $instance=Initialize-AzDataProtectionBackupInstance -DatasourceType AzureDataLakeStorage -DatasourceLocation $TestBkpVault.Location -PolicyId $adlsBkpPol.Id -DatasourceId $SAId -BackupConfiguration $backupConfig

  3. Submit the request to trigger backup configuration using the New-AzDataProtectionBackupInstance cmdlet.

    New-AzDataProtectionBackupInstance -ResourceGroupName "StorageRG" -VaultName $TestBkpVault.Name -BackupInstance $instance

This article describes how to configure vaulted backups for Azure Data Lake Storage using Azure CLI.

Prerequisites

Before you configure vaulted backup for Azure Data Lake Storage, ensure that the following prerequisites are met:

Configure vaulted backup for the Azure Data Lake Storage using Azure CLI

After the vault and backup policy are created, configure vaulted backup for Azure Data Lake Storage by reviewing the following sections:

  1. Fetch the ARM ID of the storage account containing the Data Lake Storage to be protected
  2. Grant permissions to the Backup vault
  3. Trigger the request for backup configuration

Important

After a storage account is configured for Data Lake Storage backup, a few capabilities, such as change feed and delete lock, are affected. Learn more.

Fetch the ARM ID of the storage account containing the Data Lake Storage to be protected

The Azure Resource Manager (ARM) ID of the storage account is required to configure vaulted backup for Azure Data Lake Storage. This ID identifies the storage account that contains the Data Lake Storage you want to protect. For example, use the storage account CLITestSA in the resource group adlsrg in a different subscription present in the Southeast Asia region.

TO fetch the ARM ID of the storage account, run the following example command:

"/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx/resourcegroups/adlsrg/providers/Microsoft.Storage/storageAccounts/CLITestSA"

Grant permissions to the Backup vault on the storage account

The Backup vault requires permissions on the storage account to enable backups on Data Lake Storage present within the storage account. The system-assigned managed identity of the vault is used for assigning such permissions.

You need to assign the required permissions via Azure role-based access control (RBAC) to the created vault (represented by vault Managed System Identity (MSI)) and the relevant storage account.

Learn how to grant permissions to the Backup vault using Azure portal for Azure Data Lake Storage.

Trigger the request for vaulted backup configuration

After all the relevant permissions are set, configure Azure Date Lake Storage vaulted backup by running the following example cmdlets:

  1. Prepare the request by using the relevant vault, policy, storage account, and the backup configuration object you created using the az dataprotection backup-instance initialize command.

    az dataprotection backup-instance initialize --datasource-type AzureDataLakeStorage  -l southeastasia --policy-id "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/testBkpVaultRG/providers/Microsoft.DataProtection/backupVaults/TestBkpVault/backupPolicies/AdlsPolicy1" --datasource-id "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/adlsrg/providers/Microsoft.Storage/storageAccounts/CLITestSA" > backup_instance.json

  2. Submit the request to trigger backup configuration using the az dataprotection backup-instance create command.

    az dataprotection backup-instance create -g adlsrg--vault-name TestBkpVault --backup-instance backup_instance.json

    The following example JSON configures an Azure Data Lake Storage backup for a specified storage account with specified policy and container list.

    {
    "properties": {
        "friendlyName": " adlsbackup",
        "dataSourceInfo": {
            "resourceID": "/subscriptions/ xxxxxxx-xxxx-xxxx-xxxx /resourceGroups/adlsrg/providers/Microsoft.Storage/storageAccounts/adlsbackup",
            "resourceUri": "/subscriptions/ xxxxxxx-xxxx-xxxx-xxxx /resourceGroups/adlsrg/providers/Microsoft.Storage/storageAccounts/adlsbackup",
            "datasourceType": "Microsoft.Storage/storageAccounts/adlsBlobServices",
            "resourceName": " adlsbackup",
            "resourceType": "Microsoft.Storage/storageAccounts",
            "resourceLocation": "francesouth",
            "objectType": "Datasource"
        },
        "policyInfo": {
            "policyId": "/subscriptions/ xxxxxxxx-xxxx-xxxx-xxxx/resourceGroups/adlsrg/providers/Microsoft.DataProtection/backupVaults/ TestBkpVault/backupPolicies/AdlsPolicy1",
            "policyParameters": {
                "backupDatasourceParametersList": [
                    {
                        "containersList": [
                            "container7",
                            "container8"
                        ],
                        "objectType": "AdlsBlobBackupDatasourceParameters"
                    }
                ]
            }
        },
        "protectionStatus": {
            "status": "ProtectionConfigured"
        },
        "currentProtectionState": "ProtectionConfigured",
        "provisioningState": "Succeeded",
        "objectType": "BackupInstance"
    },
    "id": "/subscriptions/ xxxxxxxx-xxxx-xxxx-xxxx /resourceGroups/adlsrg/providers/Microsoft.DataProtection/backupVaults/ TestBkpVault/backupInstances/adlsbackup",
    "name": " adlsbackup",
    "type": "Microsoft.DataProtection/backupVaults/backupInstances"
}
